By Roman Ross — Marine Construction Estimator, Shore Protect Construction
A homeowner on Wonder Lake, in McHenry County, Illinois, sent us seven photographs of a 100-foot concrete seawall and asked the question we hear more than any other: is this worth repairing, or is it too far gone? He did not want to be talked into either answer. He asked for both prices — one to repair the wall, one to replace it — so he could decide with real numbers in front of him. This post is what the photographs showed, why the wall is moving, what each option was quoted at, and how the permitting differs between them.
Bottom line: In Wonder Lake, IL in 2026, anchoring and repairing this leaning 100-foot concrete seawall was quoted at $19,903 — $199.03 per linear foot — while replacing it outright with a driven vinyl wall and a poured concrete cap was quoted at $65,500. The wall is tipping because it was built with nothing buried behind it to hold it back, so the repair spends its budget on 14 tieback anchors rather than on cosmetic patching.
Wonder Lake is a dam-impounded freshwater lake, so there is no tide here and no salt — the wall is fighting ice, waves and soil pressure, not chloride. The run is a straight 100 feet along a private residential lot. The wall stands about five feet from the lake bottom to the top of the cap, with roughly three and a half feet of that showing above low water; after heavy rain the lake comes up to the top of the cap. It is thin cast-in-place concrete with a narrow flat cap on top, the standard build for this shoreline a few decades ago. Along the entire waterline the cement paste has washed out and the coarse aggregate is standing fully exposed — the stones are proud of the surface and loose grit comes off under a thumb. In northern Illinois that is freeze-thaw cycling plus wave abrasion doing exactly what they do to unprotected concrete over thirty or forty winters.

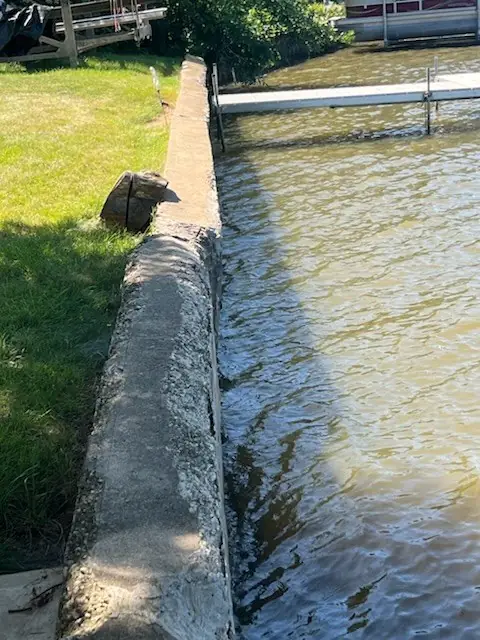

The most useful thing in the photographs is not on the wall at all — it is in the lawn. A bare, settled strip of soil runs the length of the crest immediately behind the cap. Grass does not fail in a straight line for no reason. That strip is the owner's yard leaving through the cracks in the wall, and it changes the diagnosis from cosmetic to structural. The rest of the site reads well for working: open lawn about twenty-five feet deep behind the wall, so machines and materials come in over land and no barge is needed. A boathouse sits tight against the wall at one end and mature trees overhang the other, which costs reach at both ends, and a boat lift and aluminum dock sections are bolted to the wall and have to come off and go back on. For what a straight run of this height generally costs in the county, see our Wonder Lake seawall cost guide.
The lean decides it. Look at the middle of the run and the cap tilts toward the water while the top edge bows outward — and there is not a single waler, tie rod or anchor plate anywhere on the wall. It was built as a gravity wall: its own weight and footing against everything the soil behind it can push. That works until it doesn't, and once rotation starts it is progressive. So the repair we quoted does not lead with concrete. It leads with 14 anchor sets buried in the lawn, tied back to the wall with 140 feet of three-quarter-inch steel rod and tensioned to arrest the movement. Restoring the worn face comes after that, and deliberately so — a beautifully patched wall that is still rotating is money spent on the symptom.
Two honest limits belong on the record. First, tiebacks stop a wall from moving further; they do not pull a badly rotated section back to plumb. This wall will end up solid and safe, not straight and new. Second, the repair restores the worn sections in parts rather than resurfacing all 100 feet, which is what keeps the price where it is — the untouched length keeps weathering. Resurfacing the full face is available and adds about $12,600. There is also one thing no photograph can settle: whether the concrete below the waterline is still whole. If a site survey finds it holed through, anchors have nothing to hold and replacement becomes the only honest answer. We have worked both sides of this call before — see the concrete bulkhead repair on a Cypress, TX community lake for a wall that was worth saving, and the vinyl vs steel seawall on the Rock River in Rockford, IL for one that was not.
A seawall is a dam holding back dirt, and like any dam it fails at the drainage before it fails at the structure. Rain soaks the lawn, the water has to get out somewhere, and it leaves through the cracks in the concrete — carrying the fine soil with it every time. Two things follow. The ground behind the wall drops, which is the bare strip you can see along the crest. And the voids left behind take away support the wall was relying on, so each season the wall carries a little more load with a little less help. That is why the fix sequence is anchors first, then drainage fabric behind the wall, then the face. Eighty square yards of filter cloth goes in behind the concrete: fabric fine enough to hold soil back but open enough to let water through, so pressure never builds and the yard stops washing into the lake.
The anchoring itself is straightforward once you have seen it done. We dig a short trench in the lawn behind the wall roughly every eight feet and bury a pressure-treated 6×6×6 timber in each one. A three-quarter-inch steel rod runs from that buried timber through the wall, with a plate on each end, and a turnbuckle takes up the slack until the rod is in tension. Think of a guy-wire on a tent: the wall is now held by fourteen of them instead of standing on its own. The anchors sit far enough back to be in undisturbed ground rather than in the soil that is already moving, and they are invisible when the sod goes back down.
Both quotes are fixed-scope, and neither shows line-item pricing to the customer — the totals are the numbers that govern. What follows is the as-quoted material set for each, so you can see exactly where the difference in price lives.
The repair is a four-person crew — a foreman, a marine carpenter and two laborers — for about four working days. The replacement is a bigger operation and runs closer to seven, with a five-person crew and an excavator driving panels. Here is how the repair goes.
Phase 1 — Protect the lake and clear the wall. A silt fence goes up on land and a floating turbidity curtain goes in the water, so nothing we knock loose ends up clouding the lake. The boat lift and the aluminum dock sections come off the wall and are set aside on the lawn. Then we chip away every bit of loose, crumbling concrete on the water side and cut out the cap sections that are already broken, and all of it is hauled off site.
Phase 2 — Anchor the wall. Fourteen short trenches are cut in the lawn behind the wall at roughly eight-foot centers. A treated timber goes in each, a rod runs from timber to wall, plates and nuts go on both ends, and every turnbuckle is tensioned in sequence rather than one at a time — you bring the whole wall into tension evenly, not corner by corner.
Phase 3 — Restore the face and the ground. The worn zones at the waterline are rebuilt with structural repair mortar and the broken cap sections are re-poured and pinned into the sound concrete beside them. Filter cloth goes in behind the wall, the washed-out strip is refilled with the excavated soil and compacted, and the sod, dock and boat lift all go back.
The anchored repair was quoted at $19,903, or $199.03 per linear foot across the 100-foot run. The quote states that total covers materials, our crew, equipment rental, hauling away the broken concrete, and filling the washed-out ground behind the wall with excavated soil, billed 50 percent to start and 50 percent on completion. Restoring the worn sections in parts is what holds that number down; resurfacing the entire 100-foot face instead adds roughly $12,600. Full replacement with a driven vinyl wall and a poured concrete cap was quoted at $65,500, or $554.65 per linear foot. Permit fees are not carried inside either figure — settle who pays them in writing before work is scheduled.
Both numbers sit inside the normal band for this kind of work. Across Illinois, seawall repair generally runs $120–$400 per linear foot and full replacement $150–$1000 per linear foot, depending on wall height, access and permitting. Short runs price higher per foot because fixed mobilization spreads over fewer feet; a straight 100-foot run with open lawn access sits at the efficient end of both bands. To price your own shoreline, our free seawall cost calculator works by the linear foot, our Wonder Lake seawall cost guide breaks the same work down locally, and seawall services in Wonder Lake covers what we actually do on these lakes. The Illinois seawall overview puts the Chain O'Lakes, the Fox River and inland lakes like this one side by side.
This is where the two options genuinely diverge, and it is worth doing the arithmetic rather than reacting to the headline numbers. An anchored repair of an existing concrete wall is a decade-scale fix: the anchors hold indefinitely, but the original concrete keeps weathering everywhere the mortar did not reach, and eventually the waterline calls again. A driven vinyl wall with a poured concrete cap is a 40 to 50 year structure — vinyl does not spall, rust, or lose paste to freeze-thaw, which is precisely the failure that took the existing wall down. The repair is not the worse decision; it is the decision that makes sense when the budget is the binding constraint, and it buys a decade of time to plan for the replacement rather than being forced into it after a bad winter.
Shoreline work on Wonder Lake clears two desks: McHenry County, and the lake association that governs what happens along the water on this lake. A like-for-like repair — same footprint, same alignment, no new structure in the water — is normally handled as maintenance and moves through faster than new construction does. Replacing the wall is a different animal. A new structure on a regulated lake typically also draws review from the Illinois Department of Natural Resources Office of Water Resources, and that review is a meaningful part of why replacement timelines run weeks longer than repair timelines. Neither quote carries permit fees inside the total, so agree in writing who files and who pays before the crew is scheduled. Whichever option you pick, start the paperwork at signing rather than when the crew is ready — on inland Illinois lakes the association review, not the county, is usually what sets the calendar.
This 100-foot concrete seawall in Wonder Lake, IL was quoted at $19,903 for an anchored repair, which works out to $199.03 per linear foot. That is a fixed-scope package: materials, crew, equipment rental, hauling away the broken concrete, and filling the washed-out ground behind the wall with excavated soil, billed 50 percent to start and 50 percent on completion. Resurfacing the entire 100-foot face instead of restoring the worn sections in parts adds roughly $12,600 on top.
It depends on whether the wall is still structurally whole. The owner of this Wonder Lake, IL seawall asked for both prices before deciding, which is the right instinct. Repair made sense here because the concrete stem is still solid enough to hold anchors and the wall is tipping rather than falling apart. If the stem had been holed through at the waterline, no amount of anchoring would have saved it and replacement would have been the only honest answer. Repair was quoted at $19,903 against $65,500 for full replacement.
Almost always because nothing was buried behind it to hold it back. A seawall built without tieback anchors relies on its own weight and its footing to resist the soil pushing from behind, and on a lot like this one in Wonder Lake, IL that soil gets heavier every time it rains. Once the wall starts rotating it does not stop on its own. Anchors are what arrest the movement, which is why 14 of them are the largest item in this repair.
A settled or bare strip of lawn along the top of the wall means your yard is leaving through the cracks. On this Wonder Lake, IL property that strip ran the full 100 feet and was the single most useful thing in the owner's photographs. Water moving out through the wall carries fine soil with it, the ground behind drops, and the void that is left removes support the wall was counting on. Filter fabric behind the wall is what stops the process.
Expect to clear it with McHenry County and with the lake association that governs shoreline work in Wonder Lake, IL. A like-for-like repair is normally treated as maintenance and moves faster than new construction. Replacing the wall with a new structure on a regulated lake typically also draws review from the Illinois Department of Natural Resources Office of Water Resources, which is a large part of why replacement schedules run longer. Confirm in writing who carries the permit fees before you sign anything.
An anchored repair of an existing concrete wall like this one in Wonder Lake, IL is typically a decade-scale fix, because the original concrete keeps weathering everywhere the repair did not touch. A driven vinyl wall with a poured concrete cap is a 40 to 50 year structure, since vinyl does not spall, rust or freeze-thaw at the waterline. On cost per year the replacement is usually the cheaper of the two, and the repair is the better answer when the budget is the binding constraint.
We work the inland lakes and rivers of northern Illinois — Wonder Lake, McHenry, Crystal Lake, the Chain O'Lakes and the Fox River — on concrete, vinyl, steel and rip rap shorelines. Send us photographs of your wall the way this owner did, especially one shot straight down the run and one of the ground right behind the cap, and we will tell you honestly whether it is a repair or a replacement before anyone comes out. Get in touch for a free estimate.
