By Roman Ross — Marine Construction Estimator, Shore Protect Construction
The owner of a private waterfront lot on Lake Austin sent us photos in August 2026 with a short, worried note: the ground behind the concrete bulkhead was disappearing, and the hole had reached the edge of the patio. The wall itself, they said, looked perfect. They were right on both counts — and that combination is what makes this job worth writing up. Below: what the photos actually showed, why we quoted a backfill repair instead of a new wall, how a cavity under a concrete slab gets filled without demolishing it, what the job cost, and how permitting works on a Lake Austin shoreline.
Bottom line: Repairing a 32-foot concrete bulkhead on Lake Austin in Austin, TX in 2026 cost $14,000 for the soil-void repair as a fixed-scope package — or $17,300 with a full weep-hole and drainage retrofit that fixes the cause instead of the symptom. The wall was never the problem; the missing drainage behind it was.

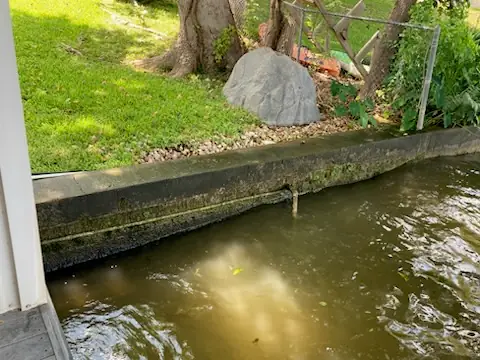

Thirty-two feet of cast-in-place concrete bulkhead, 15 inches thick, holding a manicured lawn back from fresh water on Lake Austin. Roughly 20 inches of wall stands above the waterline and about 24 inches sits below it. The face is in genuinely good condition — plumb, no lean, no meaningful spalling, no structural cracking. If you walked the shoreline you would call it a healthy wall, and you would be right.
The damage is all behind it. The pea-gravel border along the lawn is sinking into a gap at the back of the wall, and the cavity has already worked its way under the edge of the concrete patio beside a covered fire pit — an open void you can see into at the slab edge. A white PVC irrigation line crosses that washout suspended in mid-air, the soil that used to carry it simply gone. Access is straightforward by land, no barge needed, but the lawn is high-value and the excavation near the slab and the irrigation line has to be dug by hand. For per-foot context on the local market, our Austin bulkhead construction cost page breaks pricing down by material and scope.
The instinct when a lawn starts vanishing is to assume the wall has failed and price a replacement. Here that would have been an expensive misdiagnosis. A concrete bulkhead and the soil behind it are two separate systems with separate life expectancies, and this one had a sound wall sitting in front of failing backfill. Replacing 32 feet of healthy concrete would have cost several times the repair and — this is the part that matters — would not have fixed anything, because the new wall would have been built with the same drainage the old one had: none. The void would have come back.
So the scope stayed where the failure was: open the ground behind the wall, seal the path the water is using, replace the soil that left, and restore the surface. The honest caveat is what sits below the waterline. Roughly two feet of this wall is underwater and could not be verified from photos, and if the site visit finds a lean or an undermined footing, the answer changes to tie-back anchoring and becomes a different quote — the same conversation we had with the owner on our concrete bulkhead repair in Cypress, TX. The failure pattern itself is one we see repeatedly: on a Jamaica Beach canal job the same backfill washout behind a sound wall took an entire concrete deck down with it. Lake Austin is fresh water and a canal on Galveston Island is salt, but the mechanism does not care.
Water gets behind a bulkhead no matter what — rain, irrigation, lake level, wave overtopping. The only question is how it gets out. A wall built with weep holes lets it drain quietly through filtered openings, leaving the soil behind. A wall built without them holds the water like a bathtub until the pressure finds the weakest path, which is always a construction joint. Water leaves through the joint, and the finest soil particles leave with it. Repeat that a few thousand times and you have a cavity. We could not find a single weep hole across the full 32 feet of this Austin wall.
The owner's own theory was wake from the boat traffic, and it is not wrong — Lake Austin carries a lot of it, and every wave that tops the wall injects more water into the backfill and speeds the cycle up. But wake is the accelerator, not the ignition. That distinction drove the whole quote: repair the void alone and the wall still has nowhere to drain, so the same washout is plausible again within a few years. That is why the drainage retrofit was quoted as the recommended option rather than an add-on, and why we said so plainly in the quote instead of letting the cheaper number sell itself.
With the excavation open, the back face of the wall gets wire-brushed clean and every seam and crack is sealed with hydraulic cement and marine epoxy, working from the soil side where the water actually enters. Cracks that have opened get stitched with #4 rebar pins set in anchoring epoxy, so they cannot work back apart under load. This is the step that closes the door the soil has been leaving through.
The cavity under the patio is the part that cannot be solved with a shovel. Once a void runs beneath a slab, no compactor reaches it and hand-tamping under a blind edge produces exactly the settlement you were trying to prevent. The answer is flowable fill — a soupy, low-strength concrete pumped through small ports drilled in the slab, which finds every corner of the cavity, self-levels, and cures into permanent support. The ports are core-patched afterward and the patio never moves. Three cubic yards were carried against a cavity measured at roughly one, because a void you cannot fully see should be priced with room in it, not optimism. The irrigation line is re-bedded on compacted material and sleeved so it is never left hanging again.
This is the as-quoted material set. Quantities are the ones carried in the estimate; individual prices stay in the quote rather than on a public page.
A crew of one foreman, one marine carpenter and laborers, on site three working days for Option A or four for Option B — the extra day covers coring the weep holes and running the drainage column the full length of the wall.
Phase 1 — Opening the washout (Day 1). Lawn and patio get protection down first. The pea-gravel border is lifted and the sod cut in strips so both go back at the end rather than into a dumpster. Then the ground behind the wall is opened to the lowest point of the washout: by hand at the slab edge and around the irrigation line, by compact machine along the open lawn. Only when it is open can anyone see how far the cavity actually runs, and that is the moment we walk the owner through what was found before going further.
Phase 2 — Sealing and filling (Day 2, plus Day 3 on Option B). The back of the wall is cleaned and every seam and crack sealed; open cracks are pinned. Ports are drilled through the patio and flowable fill is pumped into the void beneath until it comes up level, then the ports are patched. The irrigation line is re-bedded and sleeved. On Option B the five weep holes are cored through the wall on this phase and each one fitted with its filter sock.
Phase 3 — Drainage, backfill and restoration (final day). Filter fabric goes against the back of the wall — water passes, soil does not — with drainage stone against it, across the washed-out zone on Option A or the full 32 feet on Option B. Clean sand returns in compacted lifts rather than one dumped load, because a single uncompacted fill is a future void with a delay timer. Finally the gravel border is reset, fresh St. Augustine sod goes down, and all debris leaves the property.
This job was quoted at $14,000 for Option A — the soil-void repair — and $17,300 for Option B, which adds the full-length drainage retrofit for $3,300 more on the same mobilization. Both are fixed-scope packages, not open-ended time and materials: excavation, sealing and pinning the wall, flowable fill under the slab, filter fabric and drainage stone, compacted backfill, permit allowance, travel, restoration of the gravel border and sod, and haul-off of all debris. Payment splits in half — $7,000 and $7,000 on Option A, $8,650 and $8,650 on Option B — one payment at scheduling and one after the owner has walked the finished site with us.
We deliberately did not publish a per-foot figure for this one. The fixed costs of getting a crew and materials from Houston to Austin do not shrink because the wall is short, so spreading them across 32 feet produces a number that looks alarming and means nothing. For a per-foot estimate on your own wall, our free bulkhead cost calculator runs repair and replacement by material and length; the Austin bulkhead cost guide covers local ranges, and the Austin bulkhead service overview describes what we build and repair around Lake Austin and the Colorado River. As a general market band, concrete bulkhead repairs run from $120 to $350 per linear foot, driven mostly by run length and how far the soil loss has travelled.
The concrete here has decades left in it. What determines whether this owner spends money again in five years is not the wall — it is whether the water behind it has somewhere to go. That is the entire argument for the $3,300 delta. Option A restores what was lost and leaves the hydraulic conditions exactly as they were, which on a wake-heavy stretch of Lake Austin means the clock restarts. Option B changes the conditions, and the wall stops being a dam.
Lake Austin shoreline work falls under City of Austin review, and the overlay rules there are stricter than most Texas lakes — which is exactly why the shape of this scope matters. Every part of the work happens on the land side of an existing wall: excavation behind it, sealing, void fill, backfill, sod. Nothing new is built, the footprint does not change, no material is placed lakeward of the wall, and the wall is neither raised nor extended. That reads as maintenance of an existing structure rather than shoreline modification, which is the favorable side of the line to be on. We carry a refundable permit allowance inside the quoted price and confirm the actual requirement with the City of Austin during the free on-site evaluation; if no permit is required, it comes back to the owner. Worth naming what is deliberately outside this scope and would need its own City of Austin approval: anything intended to reduce boat wake, raising the height of the wall, or adding rock protection at its base on the water side.
Because a concrete bulkhead and its backfill fail on completely different schedules. On this Austin job the wall was plumb, uncracked and structurally sound, yet the ground behind it had hollowed out far enough to undercut a patio slab. Lake water pushes through the construction joints when the level rises or a wake rolls in, then drains back out through the same joints and carries fine soil with it. Each cycle moves a little more. Nothing shows on the face of the wall in Austin until the lawn dips, a paver tilts, or a slab edge opens up — by then the void has usually been growing for years.
Wake makes it worse, but it is rarely the thing that starts it. The owner on this Austin job assumed wake boats were the cause, and that was a reasonable read — Lake Austin carries heavy wake traffic and every wave that tops a wall drives water into the backfill. What we found instead was that the wall had no weep holes anywhere along its 32 feet, so trapped water had only one way out: back through the joints, taking soil with it. Wake is the accelerator. Missing drainage is the cause. Fix only the wake and the washout continues; fix the drainage and the wake stops mattering nearly as much.
For this 32-foot concrete bulkhead on Lake Austin the quote came in at $14,000 for the soil-void repair, or $17,300 for the same work plus a full-length drainage retrofit — a difference of $3,300. Both are fixed-scope packages covering excavation, sealing and pinning the wall from the soil side, pumping flowable fill into the cavity under the patio, compacted backfill, permit allowance, and restoring the gravel border and sod. It is quoted as a package rather than per foot because the fixed costs of reaching Austin do not shrink over a 32-foot run and would distort a per-foot number. Broader concrete bulkhead repairs generally run from $120 to $350 per linear foot depending on length and how far the soil loss has spread.
Weep holes are small drains cored through the wall so groundwater behind it can leave without pressure building. Think of a dam with no spillway: the water has to go somewhere, so it finds the weakest seam and pushes through, widening it a little more each time. On this Austin bulkhead we could not find a single weep hole across 32 feet, which is common on older cast-in-place walls on Lake Austin. Option B added five 3-inch cored holes at roughly 7-foot spacing, each fitted with a filter sock, plus a stone drainage column behind the wall so the holes stay fed and do not silt up.
It depends on how far the work reaches toward the water, and Lake Austin sits under a City of Austin shoreline overlay with its own review. This repair is unusually favorable on that front: everything happens on the land side of an existing wall — excavation behind it, sealing, void fill, backfill and sod — with no new structure, no change to the footprint, and no fill placed lakeward. That is maintenance rather than shoreline modification. We carry a refundable permit allowance in the price and confirm the actual requirement with the City of Austin during the free site visit, and it is refunded if no permit turns out to be required.
Yes, and that is exactly why flowable fill was specified on this Austin job. Once a cavity runs under a slab there is no way to get a compactor into it, and hand-tamping under an edge you cannot see is guesswork that settles later. Flowable fill is a soupy low-strength concrete pumped through small ports drilled in the slab. It runs into every corner of the void, self-levels, and hardens into permanent support, then the ports are core-patched. The patio stays where it is. Three cubic yards were carried here for a cavity measured at roughly one, because the only honest way to price a void you cannot fully see is to leave room in it.
We repair and rebuild concrete, vinyl, steel and timber bulkheads across Austin, Travis County and the Highland Lakes — soil-void and washout repair, weep-hole drainage retrofits, joint sealing, crack stitching and full replacements. If your lawn is dipping, a slab edge has opened, or gravel is disappearing behind the wall, send photos and rough dimensions and we will tell you honestly whether it is a backfill problem or a wall problem. The on-site evaluation is free and it is what confirms the final price. Get in touch here.
