Vinyl vs Steel Seawall on the Rock River — 125 ft Install in Rockford, IL

By Roman Ross — Marine Construction Estimator, Shore Protect Construction

A homeowner on the Rock River in Rockford, Illinois came to us with a 125-foot run of shoreline where the old concrete edge had simply given up — the slab cracked into sections, tipped toward the water, and undermined at the toe. The bank behind it was next. The owner wanted a real seawall and asked for two prices, vinyl and steel, so the decision could be made on numbers instead of a sales pitch. Below is the full trade-off we walked through, both quotes as they were delivered, and why a freshwater river like this one points so clearly to one of the two answers.

The Site: 125 LF of Failing Concrete on the Rock River

The property sits on the Rock River in Rockford — freshwater, riverine, no tidal action and no saltwater corrosion to design around, but with real river current and seasonal ice at the top of the wall. The existing shoreline protection is an old poured-concrete cap and walk running the full 125 linear feet. It is well past repair: the slab is cracked transversely and longitudinally, voids are visible beneath it, and the whole edge is leaning toward the river as the bank washes out from under it. The owner's goal is a wall that holds roughly 6 feet of exposed height — about 3 feet above the normal water line and 3 feet down to the silty bottom — with longer sheets driven below the riverbed for embedment.

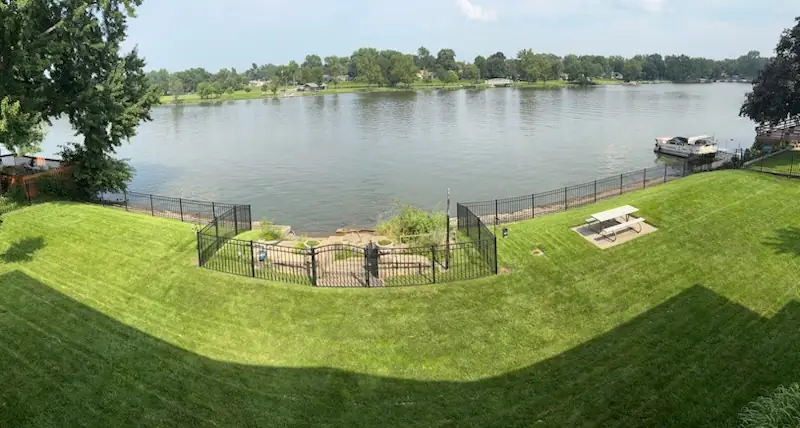

Two facts shaped the bid from the first walk. First, land access is excellent — there is an open lawn roughly 30 feet deep behind a wrought-iron fence, so equipment can stage on the bank and no barge is needed. Second, the property line ends are open: neither neighbor has a wall to tie into, and there is a masonry stair and gate mid-run that the new wall has to work around. River work here also crosses three jurisdictions — City of Rockford floodplain review, the Illinois DNR Office of Water Resources, and the U.S. Army Corps of Engineers — which we cover in the permitting section below. The rest of this post is what those facts look like as two real quotes.

The Decision: Vinyl Sheet Pile vs Steel Sheet Pile

Both materials will hold this bank. Vinyl and steel seawalls in Illinois are both anchored sheet-pile systems — driven panels tied back to buried deadman anchors — and on the Rock River the structural concept is identical between them. Only the face material and what it demands over time are different. What makes this site interesting is that the freshwater setting removes the one advantage steel usually buys: in salt or brackish water steel's strength comes with a corrosion penalty that pushes owners toward vinyl, but in calm-to-moderate freshwater neither material is fighting corrosion the way a coastal wall would. That leaves the decision to come down to structural need versus cost — and here the cost gap is wide.

The honest read for this property: vinyl is the recommendation. The Rock River at this reach carries moderate current and light pontoon and bowrider traffic — there is no commercial-barge impact and no heavy ice scour that would demand steel's structural premium. Vinyl is inert in freshwater, looks clean and slim against a residential lawn, and costs roughly $44,000 less on this run. Steel stays on the table only as the engineered fallback: if the geotechnical probe finds deep soft mud, or the owner later wants to hang a dock off the wall, the heavier section and welded waler are worth it. For the same freshwater decision elsewhere, see our steel sheet pile bulkhead on Lake Livingston — where the engineering did drive steel — and our vinyl vs wood bulkhead on Lake Conroe, the same material trade-off on a sheltered lake.

Why the Wall Goes at the Outer Concrete Face — and How the Open Ends Are Handled

The first design call was the wall line. The tempting option is to build a new wall back at the fence and leave the old concrete out front, but that is the one choice we steered the owner away from. Leaving the failing slab forward of the new wall traps it between the wall and the river, where it keeps eroding from underneath and stays a problem forever. Driving the new sheet pile along the outer face of the existing concrete edge does the opposite: the wall passes into competent native river-bottom soil, and the cracked slab becomes material we remove rather than a liability we build around. We also do not recommend pushing the line farther into the river — that adds Corps of Engineers permitting and invites scour at the toe.

The second call was the open ends. Because neither neighbor has a wall to tie into, a wall that simply stopped at each property line would let the river curl in behind it at the corners — the most common way a good wall fails early. So the design turns the sheet pile and drives a short 6-to-9-foot return into the bank at each property line, keying the wall into the shoreline at both ends. At the mid-run masonry stairs and gate, the sheeting is returned a couple of feet inboard so water cannot pipe behind the wall at the steps. These returns are part of the wall scope on both the vinyl and steel quotes, not an add-on.

Materials & Specifications: What Goes Into 125 LF on the Rock River

Below is the as-quoted material set for each option, taken from the client quotes. Both include sawcut and removal of the failing concrete as a separate line, geotextile filter fabric and crushed-stone drainage behind the wall, and tie-backs to buried CCA-timber deadman anchors. The structural backbone is the same idea on both walls; the steel option adds a welded steel waler with a timber cap on top, which is the finished edge the owner preferred to see.

One detail worth calling out: backfill behind the new wall is placed by hand. The property has an underground irrigation system and an intact lawn the owner wants protected, so rather than run a loader across the turf, the crew lays protective mats over the grass and hand-places the fill in lifts — a sand lift first, then soil over it — keeping equipment off the lawn.

Phase-by-Phase Execution Plan

Both options break into the same three phases. The vinyl option runs 9 working days with a five-person crew; the steel option runs 13 working days and adds a pile-driver operator because the Z-section is driven with a vibratory hammer and the waler is field-welded. Both timelines assume the permits are in hand on day one.

Phase 1 — Site Preparation. The crew mobilizes from the Chicago-area yard and stages on the lawn behind the fence — no barge needed at this reach. The wall line is staked along the outer face of the existing concrete edge, and the failing slab is sawcut into sections and broken out where the new sheeting will drive, so the wall lands in competent native soil. Silt fence is hung at the waterline to keep construction sediment out of the river.

Phase 2 — Structural Installation. The sheet pile is driven vertically along the marked line — vinyl with a hydraulic clamp on a mid-size excavator, steel with an excavator-mounted vibratory hammer — interlocking each panel as it advances, with about 6 feet left exposed above the water and the balance embedded below the riverbed. The short returns are driven into the bank at both property lines, and the sheeting is returned inboard at the mid-run stairs. The waler is run across the pile heads (a bolted vinyl waler, or on the steel option a continuously welded C-channel), tying every panel into one rigid section. Tie-back trenches are cut back into the lawn, deadman anchors are set, and a tie rod from each anchor is tensioned through the waler with a turnbuckle and plate washer.

Phase 3 — Protection & Backfill. 8 oz geotextile filter fabric and crushed stone #57 go in behind the wall to relieve water pressure and stop soil from migrating through the joints. The top of the wall is finished — a snap-on vinyl cap on the vinyl option, or a timber cap over the welded steel waler on the steel option. Backfill is hand-placed over lawn mats to protect the irrigation lines, the yard is graded back to a flush, stable finish, fence sections are reset between the undisturbed posts, and all debris is hauled off.

Cost Anchor: What 125 LF Costs on the Rock River in 2026

For this 125 LF Rock River seawall, the quotes came in at $558 per linear foot for vinyl ($77,929 total) and $690 per linear foot for steel ($122,250 total). The per-foot figure is the wall rate; the totals also carry the site-specific demolition of the failing concrete and the lawn-protection restoration this property needed, which is why the gap between totals is wider than the gap between per-foot rates. Both numbers are pre-survey estimates — final pricing still depends on the site survey, the geotechnical probe, and the permit determinations — but they are real all-in numbers, not pre-permit teasers.

To see how those figures fit the broader local market, our seawall construction and repair cost in Illinois page covers statewide ranges, and the Illinois seawall service overview walks through what we typically deliver across the North Shore, the Fox River, the Chain O'Lakes, and inland rivers like the Rock. Short runs under about 60 LF tend to price higher per foot because fixed mobilization is spread over fewer feet; longer, straight runs with good land access — like this one — sit at the more efficient end.

Lifespan & 30-Year Cost of Ownership

The upfront price is the easy number. The more useful one is what each wall costs you over a 30-year ownership horizon. This is where the Rock River's freshwater setting makes the comparison unusual — and where vinyl's case gets stronger, not weaker.

Permitting on the Rock River: Rockford, IDNR, and the Corps

Any shoreline work on the Rock River touches three desks. The City of Rockford handles floodplain and building review. The Illinois DNR Office of Water Resources reviews construction in a public water of the state. And because the Rock River is a navigable waterway, the U.S. Army Corps of Engineers Section 10 review applies to work in and over the water. We can carry those applications for the owner, or file alongside an owner who would rather hold the permits themselves — whichever path is chosen gets written into the contract.

The realistic timeline is the part to plan around: budget 6 to 10 weeks for the IDNR and Corps reviews, and start the packet at contract signing rather than after. Spring high water on the Rock River also argues for scheduling the install for late summer through fall, when the river is lower and the bank is workable. As with every job, the survey and a geotechnical probe come first — the probe confirms embedment depth and, on this site, whether the soft river bottom is deep enough to push the decision back toward steel.

Frequently Asked Questions

For a freshwater river like the Rock River, is vinyl or steel the better seawall?

For most residential shorelines on the Rock River, vinyl is the better answer — and on this site it was both the cheaper option and the lower-maintenance one. Freshwater does not corrode vinyl at all, so a UV-stabilized vinyl wall holds for 50-plus years with no coating and no upkeep. Steel is stronger, but its strength only earns its premium when the engineering calls for it: deep soft mud, heavy ice or scour loads, or a future dock that needs the extra tie-back capacity. Without one of those drivers, steel is paying for capacity you will not use.

Why install the new seawall at the outer face of the old concrete instead of at the fence line?

Because building back at the fence would trap the failing concrete slab in front of the new wall, between the wall and the river, where it would keep eroding from underneath and stay a problem. Driving the new sheet pile along the outer face of the existing concrete edge lets the wall pass into competent native river-bottom soil and turns the old slab into removed material rather than a permanent liability. We also do not recommend pushing the wall farther out into the river — that adds USACE permitting and creates scour risk at the toe.

My neighbors have no seawall to tie into — how do you finish the ends of the wall?

We turn the sheet pile and drive a short return — roughly 6 to 9 feet — into the bank at each property line. Those returns key the wall into the shoreline so the river cannot scour or flow in behind the new wall at the corners, which is exactly what happens when a wall simply stops at an open end next to an unprotected bank. The returns are included in the wall scope; they are not an afterthought or a change order.

Who handles the Rockford, IDNR, and USACE permits, and how long do they take?

We can handle the permit applications for you — City of Rockford floodplain and building review, the Illinois DNR Office of Water Resources, and the U.S. Army Corps of Engineers Section 10 review for work in a navigable river — or you can file them yourself if you prefer; we will write the chosen path into the contract. Realistically, budget 6 to 10 weeks for the IDNR and USACE reviews. The common mistake is signing a construction contract before the permit clock starts. Apply first, then schedule the crew.

What does a vinyl seawall cost per linear foot on the Rock River in 2026?

On this 125 ft Rock River project our vinyl quote came in at $558 per linear foot for the wall, with a total of $77,929 once demolition of the failing concrete is added in. The steel alternative was $690 per linear foot and $122,250 total. Those totals carry the site-specific demolition and lawn-protection restoration this property needed, and final pricing still depends on the survey, the geotechnical probe, and the permit determinations — but the per-foot figures are real, all-in wall rates, not pre-permit teasers.

Does a steel seawall last longer than vinyl in freshwater?

Not in a way that helps you here. Steel sheet pile is designed for a long service life, but in freshwater it needs hot-dip galvanizing plus a splash-zone coating to get there, and the coating is a maintenance item that vinyl simply does not have. Vinyl is inert in freshwater — it does not rust, rot, or need recoating — so it carries a 50-plus year, zero-maintenance life with no corrosion clock at all. Steel buys structural capacity, not longevity, on a moderate freshwater reach like this one.
