By Roman Ross — Marine Construction Estimator, Shore Protect Construction
A homeowner on Lake Conroe came to us with a 170-foot bulkhead reaching the end of its service life and asked the question that comes up on almost every other freshwater job we look at: vinyl or treated timber? Both materials work on a sheltered inland lake, both can be driven in front of the failing wall to skip demolition, and both will hold the bank — but they price out very differently and they age very differently. Below is the full trade-off we walked through, the two quotes we delivered, and what we would tell anyone weighing the same decision on a Montgomery County shoreline.
Bottom line: On Lake Conroe in 2026, a 170-foot in-front bulkhead replacement runs $195 per linear foot for vinyl sheet pile ($33,150 total) and $150 per linear foot for treated timber ($25,500 total). Treated timber is cheaper upfront; vinyl wins on 30-year cost of ownership — roughly $33K versus $55K — because of its 50+ year, maintenance-free service life. Choose timber for a hard budget cap or a short-term hold, vinyl for a long-term hold.

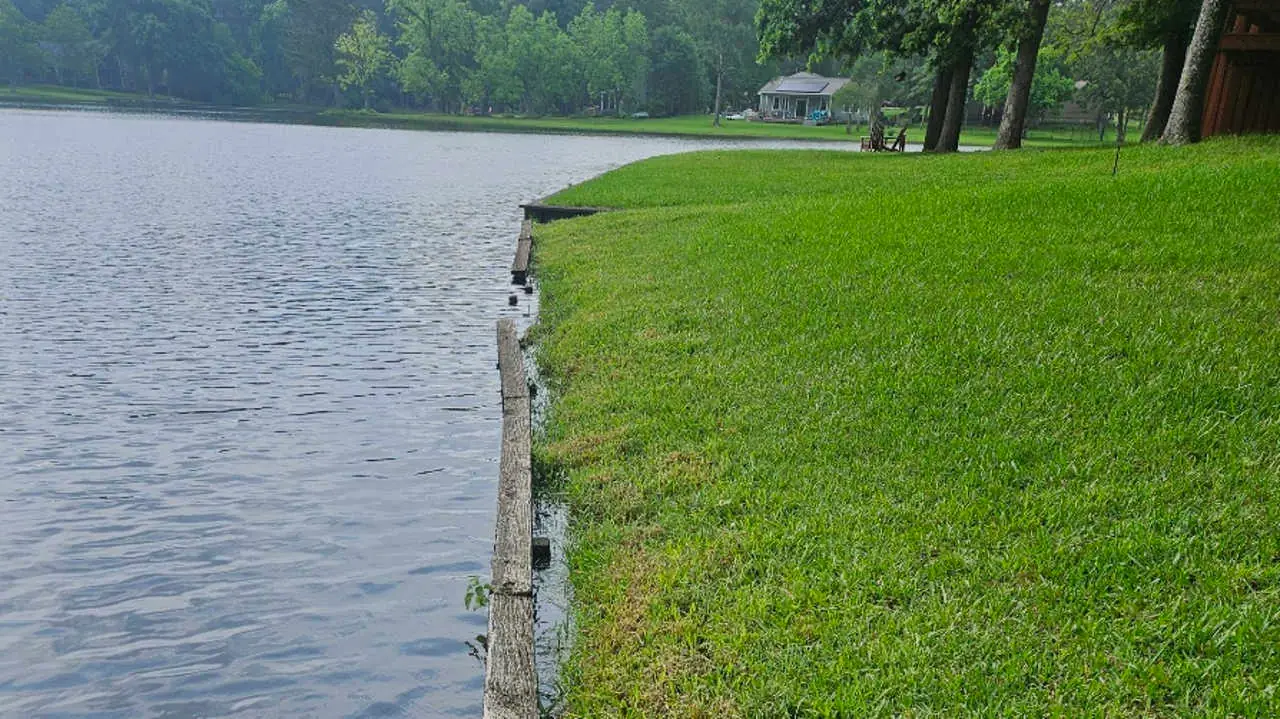

The property sits on a sheltered cove of Lake Conroe in Montgomery County, Texas — freshwater, no tidal action, no saltwater corrosion to design around. The existing bulkhead runs 170 linear feet along the bank and measures 26 inches from the lake bottom to the top of the wall, with about 4 inches of freeboard above mean water. Years of weather and the usual freeze-thaw cycles have it leaning forward and losing soil at the waterline; the owner is past the point where repair will buy meaningful time.
Two practical site facts shaped the bid from the first walk: land access is good — equipment can stage on the lawn with ground protection, no barge required — and the owner asked for the new wall to be driven in front of the existing structure, with no demolition and no backfill behind the new face. Lake Conroe shoreline work also falls under San Jacinto River Authority jurisdiction, which means a permit is non-negotiable. We've covered the local cost context in our bulkhead construction cost on Lake Conroe overview; the rest of this post is what those decisions look like on a real ticket.
Both materials are honest choices for freshwater Lake Conroe. Vinyl sheet pile bulkheads are a premium, low-maintenance, multi-decade solution. Treated timber is the traditional, lower-upfront-cost answer that almost every Texas lake property owner has seen before. The actual difference between them on a freshwater lake is less dramatic than on the coast — Lake Conroe is gentle to wood compared with brackish bays — but the 30-year math still favors vinyl for most owners who plan to keep the property.
| Factor | Vinyl Sheet Pile | Treated Timber |
|---|---|---|
| Price per linear foot (Lake Conroe 2026) | $195/LF | $150/LF |
| Total for 170 LF (flat rate, no demo, no backfill) | $33,150 | $25,500 |
| Initial cost difference | +$7,650 vs timber | baseline |
| Service life in freshwater | 50+ years | 15–20 years (face boards typically first) |
| Maintenance | None — UV-stabilized panels | Annual inspection; periodic face-board replacement |
| Rot, borers, and waterline degradation | Immune | Low risk freshwater, real risk above waterline over time |
| Appearance | Clean, uniform, modern; gray or tan finishes | Natural CCA brown, weathers to gray |
| Project duration on this job | 7 working days | 9 working days |
| 30-year total cost of ownership estimate | ~$33K (one installation) | ~$55K (one replacement cycle expected) |
| Best fit for | Long-hold owners, low-maintenance priority, clean look | Budget-first projects, short-hold or traditional aesthetic |
Reference photo: completed vinyl sheet pile bulkhead from a past Shore Protect project — not the Montgomery property.
If you want the deeper engineering and material walkthrough behind these options, our complete guide to building a waterfront bulkhead covers cantilever vs anchored design, weep-hole spacing, and the full material matrix. The short version: on Lake Conroe at this wall height, both options are anchored designs with tie rods and deadman anchors — the structural concept is the same, only the face material changes. For the same freshwater bulkhead decision at other Texas lakes, see our vinyl vs concrete bulkhead on Lake Houston and our steel sheet pile bulkhead on Lake Livingston.
When an old bulkhead is leaning but the upland soil is still where it belongs, there is no good reason to demo it. Pulling the legacy piles and waler means an excavator working the bank for two extra days, hauling fees for the old material, and rework to disturbed soil behind the wall — easily $5,000–$8,000 of avoidable cost on a 170 ft job. Driving the new wall a foot or two lakeward of the failing structure skips that entire scope.
The SJRA generally approves in-front installations without pushback as long as the new face stays inside the permitted shoreline envelope, which it does at this property. The one item that does take care is layout: the new tie rods and deadman anchors have to clear the legacy anchors buried behind the old wall. We survey for those before final stake-out so the new system doesn't end up fighting the old one. On this site the original deadmen are roughly 5–6 ft behind the existing wall face, leaving room for the new deadmen at the standard 6–8 ft setback.
One more practical note: leaving the old wall in place means a void between the legacy face and the new front face. On this project the owner declined backfill — a reasonable call when the original wall is still holding the upland and there is no settlement above. The void is invisible from the lawn and the filter fabric on the new wall keeps soil migration in check. Backfill is available as an add-on if priorities shift later.
Below is the as-quoted material set for each option. Demolition is $0 on both — no removal of the existing wall. Backfill is excluded from both per the owner's request and can be added as a separate scope item.
Reference photo: completed treated-timber bulkhead from a past Shore Protect project — not the Montgomery property. For a deeper look at timber bulkhead design and longevity, see our wood bulkhead deep-dive.
The crew is the same for both options — one foreman, two marine carpenters, two laborers — and the work breaks into the same three phases. Vinyl runs 7 working days, timber 9 working days. Both timelines assume the SJRA permit is already in hand on day one.
Phase 1 — Site Preparation. Crew mobilizes to the Lake Conroe property. The bulkhead alignment is staked and marked along the full 170 LF, positioned a foot or two lakeward of the existing wall. Material staging is set up on the lawn with ground protection boards under the equipment path. The excavator stages on the bank — land access has already been confirmed good, so there is no barge mobilization. SJRA permit documentation is on site before any wall material is unloaded.
Phase 2 — Structural Installation. On the vinyl option the interlocking 6" sheet pile panels are driven into the lake bottom using an excavator-mounted vibratory driver, set to roughly 5.5 ft total depth (26" exposed, the balance embedded). The 4"×6" two-piece vinyl waler is then run across the full 170 LF and bolted to the panels. On the timber option the 6×6 CCA piles go in at 5 ft on-center, then three rows of 2×8 face boards are spiked to the back of the piles to form the wall face. In both cases, 1" steel tie rods run from the waler or face plate back to CCA treated timber deadman anchors at the standard setback, and turnbuckles are tensioned at every anchor point.
Phase 3 — Protection & Finish. 8 oz geotextile filter fabric is secured behind the full length of the new wall to keep fines from migrating through joints or board gaps. On the vinyl option a snap-on cap profile is added at the top edge for a clean finished line. All construction debris is removed, equipment paths are graded back to the original lawn profile, and a final walkthrough is performed with the owner.
For this 170 LF Lake Conroe replacement, our quote came in at $33,150 for the vinyl option ($195/LF) and $25,500 for the timber option ($150/LF). Both numbers are flat-rate, all-in: labor, materials, mobilization, equipment, permit coordination, and crew. Demolition is excluded (no demo on either option, since we are installing in front of the existing wall) and backfill behind the new face is excluded per the owner's request. The $7,650 difference between the two options is almost entirely a function of material durability and lifespan, not labor scope.
If you want to see how those numbers fit into the broader local market, our bulkhead construction cost on Lake Conroe page covers Montgomery County-specific ranges, and the Lake Conroe bulkhead service overview walks through what we typically deliver. Quotes for sites with water-only access, harder geology, or saltwater corrosion specs land higher. Quotes for short runs (under 60 LF) tend to land higher per-foot because fixed mobilization is spread over fewer linear feet.
The upfront price is the easy number. The interesting number is what each option costs you over a 30-year ownership horizon — long enough to capture at least one timber replacement cycle, short enough to be a realistic ownership window for a lakefront property. Here is how the two options compare on this site:
Any shoreline modification on Lake Conroe is subject to San Jacinto River Authority review and permit. The good news is that the permit itself is inexpensive — typically a few hundred dollars in fees. The realistic timeline from application to approval is 4 to 8 weeks, longer if the property is inside an HOA with separate shoreline setback rules (common in the larger Lake Conroe communities). The mistake we see most often is owners signing a construction contract before the permit clock has started — that loses them their preferred crew window and pushes the work into a less convenient season. Apply for the permit early, then sequence the contract and the crew.
If you are weighing related shoreline work on the same property, our seawall construction on Lake Conroe page covers the heavier-wall option for exposed cove segments, and the same SJRA process applies.
Not always — but usually, if the wall is meant to outlast a single ownership cycle. On a sheltered freshwater lake like Lake Conroe, treated timber lasts 15–20 years before the waterline boards start to need replacement, while vinyl sheet pile commonly lasts 50+ years with zero maintenance. Wood wins when the budget is hard-capped, the property is short-term hold, or the owner specifically wants the look and feel of natural timber. Vinyl wins everywhere else.
Yes — and on Lake Conroe it is often the most cost-effective approach. Driving the new wall a foot or two lakeward of the failing structure eliminates demo cost, hauling fees, and the time required to extract old piles and deadmen. The SJRA generally approves in-front installations without issue when the new line stays inside the permitted shoreline. The trade-off is that tie-rod and deadman placement has to clear the legacy anchors, which is a site-survey item, not a deal-breaker.
Permit fees on Lake Conroe through the San Jacinto River Authority are modest — typically a few hundred dollars — but the timeline is the bigger variable. Plan for 4 to 8 weeks from application to approval, longer if the parcel sits inside an HOA with its own shoreline setback rules. The most common mistake we see is owners signing a construction contract before the permit clock starts. Apply first, then schedule.
Not always. If the original wall is still holding the upland soil and the new front wall has filter fabric to control fines, the void between the two walls can be left alone or filled later. Backfill is a separate scope item that adds material and labor cost. On this Lake Conroe project the owner specifically declined backfill, which is a reasonable choice when the legacy wall is intact and there is no surface settlement above it.
For an in-front vinyl replacement on a freshwater Lake Conroe shoreline with good land access and no demolition, our 2026 quote on this 170 ft project came in at $195 per linear foot — $33,150 total. Coastal saltwater jobs run higher because of corrosion-spec hardware, and complex access can add 20–40 percent. The $195 figure is the all-in flat rate including labor, materials, mobilization, and crew, not a pre-permit teaser.
A properly built 6×6 CCA timber bulkhead on a freshwater lake like Lake Conroe runs 15–20 years before the waterline boards and exposed faces need attention, and 25+ years if the owner stays on top of annual inspections and small repairs. The 2×8 face boards above the waterline weather faster than the embedded piles, so face replacement is the usual mid-life repair. Our 2026 quote for the timber option on this 170 ft job was $150 per linear foot — $25,500 total — about $7,650 less than the vinyl alternative.
Shore Protect Construction designs and builds vinyl, timber, and steel bulkheads across Texas inland lakes and the Gulf Coast. SJRA permit coordination, in-front replacement when it saves you money, and turnkey installation by a crew with over 20 years of marine construction experience. Request a free site estimate and we'll put a real number on your shoreline.
