By Roman Ross — Marine Construction Estimator, Shore Protect Construction
The call came in from a general contractor who was already building a deck and dock for his client on Lake Olympia — and couldn't go any further until the shoreline was solid. The property's wood bulkhead had given out: a 125-foot run of treated timber gone gray and splintered, with open voids between the panels and soil quietly washing out into sinkholes in the lawn behind it. The client needed it replaced fast. What follows is the full project — why we specified vinyl sheet pile, why the new wall was driven in front of the old one instead of demolishing it, how it gets anchored without tearing up the yard, the as-quoted materials, the phase-by-phase build, honest 2026 pricing, and what permitting on a private community lake actually involves.
Bottom line: On Lake Olympia in 2026, a 125-foot vinyl sheet pile bulkhead driven in front of a failing timber wall runs $348 per linear foot — $43,500 total, all-in, with no demolition. Vinyl was the right call for a short freshwater wall — about 6 feet bottom-to-cap — that never sees salt or surf. The new wall is tied back to the existing wood rather than to new deadmen, which keeps the crew off the narrow lawn between the wall and the pool deck. Backfill is excluded at the customer's request, so the number is wall-only.

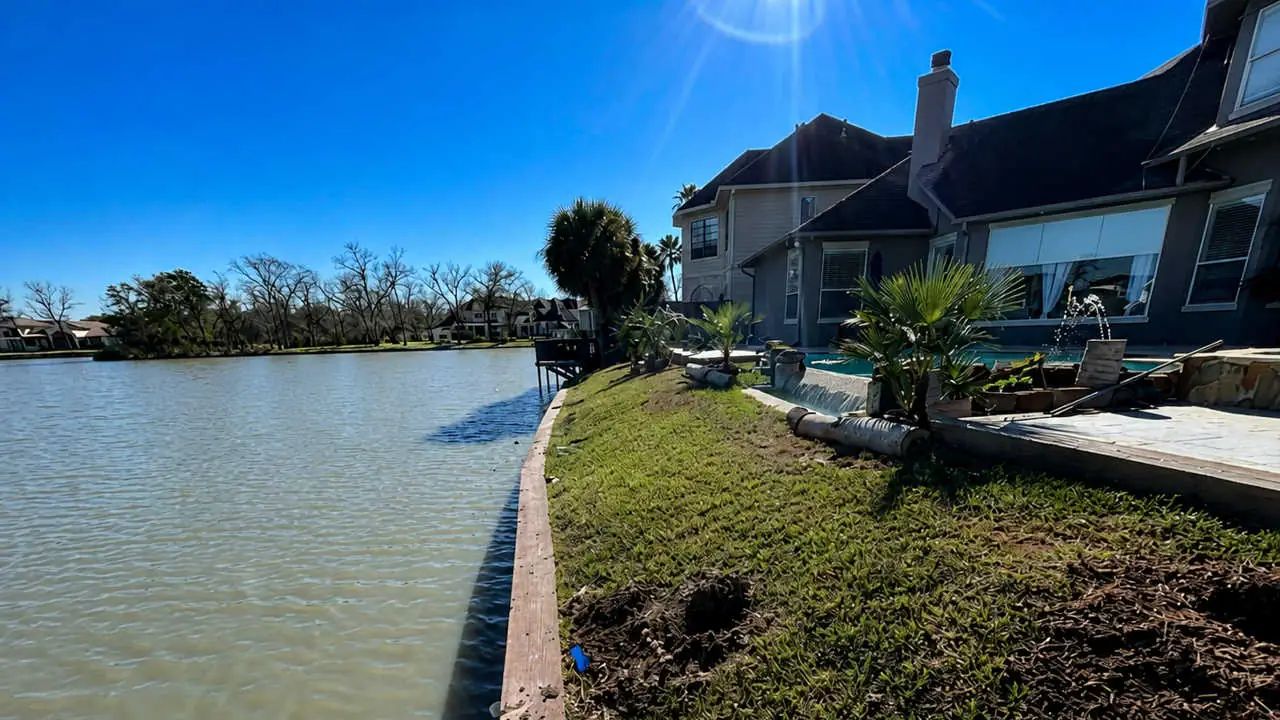

The property is a private waterfront lot on Lake Olympia, the man-made community lake at the heart of a master-planned neighborhood in Missouri City, in Fort Bend County, Texas. This is freshwater — an interior lake with no tide, no surf, and no salt corrosion to design around — which matters, because it widens the list of materials that make sense and keeps the engineering straightforward. The existing bulkhead is an aged treated-timber sheet wall: vertical wood panels with a through-bolted waler and a timber cap. After years in the weather it has blackened, the panel faces have splintered, and gaps have opened between the boards.
The wall runs 125 linear feet along the bank, and it is a short wall: roughly 6 feet from the lake bottom to the top of the cap — call it 3 feet to the waterline and another 3 feet of mud below. That low height is the single most important fact for the material choice. Behind the wall, the soil is failing in a telling way: the lawn shows open sinkholes where fines have migrated out through the splintered joints, which is the classic signature of a sheet wall that has lost its seal. The yard itself is otherwise intact, and that is exactly the condition where you replace the wall without disturbing the soil behind it.
Two practical site facts shaped the bid. First, land access is good — an open, flat lawn runs down to the water with no slope and no barge required, so equipment and materials stage on land. Second, a pool deck sits close behind the wall, which narrows the working strip and, more importantly, takes new deadman anchors and lawn excavation off the table. We cover local market ranges in our bulkhead construction and repair cost in Missouri City overview; the rest of this post is what those numbers look like on a real ticket.
When an old bulkhead has failed but the upland soil is still where it belongs, there is rarely a good reason to demolish it. Pulling the legacy sheeting, posts, and waler means an excavator working the bank for extra days, haul-off fees for the treated lumber, and rework to soil that gets disturbed in the process. Driving the new vinyl a hand-span lakeward of the failing structure skips that entire scope — and on this lot it also avoids opening a trench right next to the pool deck. Leaving the wood in place does more than save money: during construction it acts as a soil-retention shim, holding the bank while the new sheets go in, and afterward it becomes a quiet secondary barrier behind the vinyl.
The material choice is the easy part here. For a short freshwater wall — a few feet of exposed face on a calm interior lake — vinyl sheet pile is the honest, cost-effective answer. It never rots, never rusts, and shrugs off the conditions that killed the timber, all at a price that fits a 6-foot wall far better than steel or poured concrete would. Treated timber would be cheaper today, but it would just restart the same 15-to-20-year clock that brought us out here in the first place. For the same freshwater bulkhead decision on other Texas lakes — where vinyl, wood, and concrete were the candidates — see our vinyl vs wood bulkhead on Lake Conroe and our vinyl vs concrete bulkhead on Lake Houston. And for a freshwater wall where the owner chose to stay with timber, our wood bulkhead on a Houston neighborhood lake shows the other side of that trade. If you want the engineering behind anchored-versus-cantilever design, our complete guide to building a waterfront bulkhead walks through the full material matrix.
A bulkhead needs more than panels driven into the mud — it needs something holding the top of the wall back against the soil pushing on it. The usual answer is a deadman: a buried anchor set out in the yard, connected to the wall by a tie rod. On this lot, that is exactly what we wanted to avoid. The pool deck sits close behind the wall, the lawn strip is narrow, and digging a line of deadman trenches into it would be invasive and slow.
So the design uses the structure that is already there. The new vinyl waler — the horizontal beam that ties the panels together — is thru-bolted straight back to the existing wood wall with 1-inch galvanized rods and steel bearing plates, 21 sets spaced down the 125-foot run. The old timber bulkhead, still embedded in the bank, becomes the anchor. No new deadmen, no excavation behind the wall, no disturbance to the pool deck footing. It is a clean, low-impact solution — and it is honest to flag its one condition: the design assumes the old wood wall is sound enough to carry the load. That gets verified before anchor work begins. If the timber turns out too far gone to anchor to, the plan switches to new deadmen or a heavier cantilever section, and the wall is re-priced rather than quietly compromised.
Below is the as-quoted material set, straight off the client estimate. Demolition is $0 — the existing timber wall stays in place — and backfill is excluded at the customer's request, so the line items below are the wall itself.
The set is deliberately simple, and that is the point of a vinyl wall on a short freshwater run: a handful of clean, corrosion-proof components and nothing that needs painting or sacrificial coating. For a closer look at how a legacy timber wall is assessed before a replacement like this, see our wood bulkhead deep-dive.
The crew is a foreman, two marine carpenters, and two laborers — five on site. The work runs about 7 working days at a production rate near 18 linear feet per day, the rate reflecting the tie-back detail and the care needed working alongside the pool deck. The build breaks into three phases.
Phase 1 — Site Preparation. The crew mobilizes to the Lake Olympia property. The new wall alignment is marked along the full 125 LF, set a few inches lakeward of the existing timber face. Materials are staged on the lawn over ground-protection boards, with care taken around the pool deck and the narrow working strip behind the wall. Because land access is good, there is no barge mobilization.
Phase 2 — Structural Installation. The interlocking vinyl panels are driven in front of the wood, down the full run. Once the sheets are at grade, the two-piece vinyl waler is run continuously across the panel heads, and the crew thru-bolts it back to the existing wood wall with the 1-inch galvanized rods and 10×10 steel bearing plates — 21 tie points seated and tensioned so the new wall is actively held by the old structure rather than left to lean on embedment alone.
Phase 3 — Protection & Finish. The 8 oz geotextile filter fabric is secured behind the panel face to keep fines from migrating through the joints — the failure that opened the old wall up in the first place. The vinyl cap board is snapped over the top of the wall, end-post caps and joints are sealed with PVC cement and silicone, and the crew performs a final cleanup and walkthrough. Backfill is excluded from this scope, so the lawn voids are left for a separate fill scope if the owner elects it.
For this 125 LF Lake Olympia replacement, the quote came in at $43,500 — $348 per linear foot. That number is flat-rate and all-in: labor, the vinyl materials, equipment, mobilization, permit coordination, and crew. Demolition is $0 because the new wall is installed in front of the existing one, and backfill is excluded at the customer's request — so this is a wall-only figure, not an all-in site number. If the owner later wants the soil-loss voids topped off and drainage stone added behind the panels, that is quoted separately.
Pricing a vinyl wall for your own shoreline? Our free bulkhead cost calculator prices all five materials by the linear foot, so you can sanity-check a number before anyone visits. To see how this fits the wider market, our bulkhead construction and repair cost in Missouri City page covers per-foot ranges by material, the Missouri City bulkhead service overview walks through what we typically deliver and how we work, and the Missouri City seawall cost page covers the heavier-wall option for more exposed shoreline. Short runs under about 60 LF and sites with water-only access land higher per foot, because fixed mobilization spreads over fewer linear feet; a long, clean, land-accessible run like this one is the friendly end of the range.
The upfront price is the easy number; the more useful one is what the wall costs over a realistic ownership window. Vinyl sheet pile in freshwater is not exposed to the salt corrosion that limits other materials on the coast, and it is immune to the rot and borers that ended the timber wall here. On a calm interior lake like Lake Olympia, a properly installed vinyl wall is a multi-decade structure with essentially no maintenance.
Lake Olympia is a private, man-made community lake, which makes its permitting different from a public reservoir. The controlling approval here is usually the community association's architectural review, along with any City of Missouri City or Fort Bend County requirements — not a federal reservoir authority. Because the lake is an interior, man-made waterbody, U.S. Army Corps of Engineers and TCEQ jurisdiction is typically limited, though that is worth confirming for the specific property rather than assuming. The mistake we see most often is the same one we see on public lakes: owners lock a construction date before the approval clock has started. Get the association sign-off moving early, then sequence the contract and the crew around it — on a job like this, where a GC is waiting to keep building a deck and dock, that timing is the whole game.
If you are weighing related shoreline work on the same property, our Missouri City seawall cost page covers the heavier-wall option for more exposed segments, and the same approval process applies.
Because the upland yard behind the wall was still intact, and the new vinyl panels could be driven roughly a hand-span lakeward of the failing timber. Skipping demolition removed the cost of pulling the old sheeting, posts, and any buried anchors, plus the haul-off of treated lumber — and it avoided opening a trench right next to the pool deck that sits close behind this wall. During construction the old wood also helps: it holds the bank and limits soil movement while the new vinyl is driven. The one trade-off is layout, because the new wall has to clear the legacy timber by a few inches the whole way down the run.
Instead of burying new deadman anchors out in the lawn, the new vinyl waler is thru-bolted straight back to the existing wood wall with 1-inch galvanized rods and steel bearing plates — 21 sets along the 125-foot run. The old timber bulkhead, still embedded in the bank, becomes the anchor. That keeps the crew off the narrow strip of lawn between the wall and the pool deck and means no excavation behind the wall. The design depends on the old wall being sound enough to carry the load, which is checked before anchor work starts; if it cannot, the plan switches to new deadmen or a heavier cantilever section and the wall is re-priced.
For this 125-foot in-front vinyl replacement on a freshwater Lake Olympia shoreline with good land access, the quote came in at $348 per linear foot — $43,500 total. That is an all-in flat rate covering labor, the vinyl materials, equipment, mobilization, and permit coordination. There is no demolition line because the new wall goes in front of the old one, and backfill is excluded at the customer's request, so the number is wall-only. Short runs and water-only access push the per-foot figure up; a long, clean, land-accessible run like this one keeps it down.
Not on this job. The customer asked us to leave backfill out of the scope, so the $43,500 covers the wall itself — driving the vinyl, the waler, the tie-back hardware, the filter fabric, and the cap. Backfill is always a separate line for us anyway, never folded into the per-foot price. On a wall like this the soil behind it is largely held by the existing bank and the old timber, but topping off the soil-loss voids in the lawn and adding drainage stone behind the panels would be quoted separately if the owner wants it.
Vinyl sheet pile does not rot, rust, or attract marine borers, so in a calm freshwater lake like Lake Olympia a properly installed wall is a multi-decade structure — commonly quoted at 50 years or more — with essentially no maintenance. That is the core reason it is replacing treated timber here: the old wood wall reached the end of its 15-to-20-year service life, went gray and splintered, and started losing soil through the open joints. A vinyl wall is a one-and-done install on this kind of shoreline, with the cap and UV-stabilized face shrugging off sun exposure that breaks down lesser plastics.
Lake Olympia is a private master-planned community lake, so the controlling approval is usually the community association's architectural review, along with any City of Missouri City or Fort Bend County requirements — not a federal reservoir authority. Because the lake is an interior, man-made waterbody, U.S. Army Corps of Engineers and TCEQ jurisdiction is typically limited, but that should be confirmed for the specific property rather than assumed. The practical advice is the same as anywhere: get the association sign-off moving early, because the approval timeline, not the build, is usually what sets the schedule.
Shore Protect Construction designs and builds vinyl, timber, and steel bulkheads across Lake Olympia, Oyster Creek, the Brazos River, and waterfront Fort Bend County. In-front replacement when it saves you money, tie-back design that keeps your yard intact, and turnkey installation by a crew with over 20 years of marine construction experience. Request a free site estimate and we'll put a real number on your shoreline.
