By Roman Ross — Marine Construction Estimator, Shore Protect Construction
A homeowner on a quiet neighborhood lake in northwest Houston came to us with a shoreline that was quietly disappearing. The bank had eroded into a ragged, scalloped line, and the thing holding what was left of it together was the worst possible anchor: a large tree stump and a dense mat of springy roots that had grown right into the failing edge. The owner wanted two things — a clean, straight wall to stop the erosion, and the lawn back. We built a 100-foot treated-timber bulkhead to do exactly that. Below is the real project: why timber was the right material for a short freshwater wall, the stump-and-root problem that had to be solved before a single pile went in, the as-built materials, the phase-by-phase work, and honest 2026 pricing — including a short video of the finished wall.
Bottom line: On a freshwater Houston neighborhood lake in 2026, a 100-foot treated-timber bulkhead came in at $180 per linear foot — $18,000 for the wall, plus a separate $3,000 sand-backfill line, for an all-in total of $21,000. Timber was the right call because the exposed wall stands only about three feet on a calm freshwater lake — at that height the heavier price of vinyl or concrete buys nothing the site needs. The one part of the job that earned its hours was grubbing out a tree stump and a tangled root mat with an excavator before the pile line could be driven straight.
The property is a private lakefront lot on a residential subdivision lake in northwest Houston (the 77070 area). This is freshwater — a calm, contained neighborhood lake with no tidal action and no saltwater corrosion to design around — which keeps the wall in baseline pricing territory and opens the door to treated timber as a material. The shoreline had retreated into the classic erosion signature: a scalloped, undercut edge where the lawn simply ended and dropped into the water, with bare soil sloughing in at the waterline.
The run measured 100 linear feet along the bank, and the finished wall was specified to stand about three feet high — a short, straightforward freshwater wall by structural standards. Two site facts made the job buildable from land: the yard runs flat right down to the water with no slope or fencing in the way, so the crew and the excavator could stage on the lawn with no barge, and the only real obstruction was the root mass at the water's edge. The first one kept the bid clean; the second one is where the work was. We cover local market ranges in our bulkhead construction cost in Houston overview; the rest of this post is what those numbers looked like on a real ticket.
It is tempting to assume the priciest material is always the safest choice. It is not. The honest answer is to match the wall to the load, and for a short freshwater wall — about three feet of exposed face on a calm neighborhood lake — the earth pressure behind it is modest. At that scale, the extra stiffness of vinyl or the mass of poured concrete buys nothing the site actually needs, while costing meaningfully more per foot. Treated timber is the right tool here: it installs fast with a standard crew, no heavy pile rig, and it has decades of proven service on inland Texas lakes.
| Factor | Treated Timber | Vinyl Sheet Pile | Poured Concrete |
|---|---|---|---|
| Typical fit by wall height | Short walls — a few feet of face | Short-to-tall walls | Tall, heavily loaded walls |
| Used on this 100 LF project | Yes — $180/LF, $18,000 | Considered | Considered |
| Service life in freshwater | 15–20+ years | 50+ years | Multi-decade |
| Cost per linear foot | Lowest | Mid | Highest |
| Install equipment | Standard crew + excavator | Lighter driver | Forms, pump, heavy gear |
| Maintenance | Annual inspection; periodic face repair | None | Minimal |
| Best fit | Budget-first, short freshwater walls | Mid-height walls, no-maintenance priority | Heaviest, most exposed shorelines |
If you want the engineering behind the choice, our complete guide to building a waterfront bulkhead walks through anchored versus cantilever design and the full material matrix, and our wood bulkhead deep-dive covers timber detailing specifically. For the same freshwater decision on other Texas lakes, see our short wood bulkhead on Lake Conroe — the closest cousin to this wall — and, where the candidates were vinyl and poured concrete instead, our vinyl vs concrete bulkhead on Lake Houston. Same company, same honest math, different walls — and sometimes different answers.
Every job has one task that decides the schedule, and on this one it was not the wall — it was what was already in the bank. A large tree stump sat right at the waterline, and behind it a dense mat of springy roots had threaded itself through the eroding edge for yards in each direction. From a distance it looked like the roots were holding the bank together. Up close, they were the problem: the soil between them had already washed out, leaving a ragged, hollow edge that no wall could be built against.
We tried clearing it by hand first, and it did not work. The roots were too thick and too elastic — they flexed under a saw or a bar and pulled right back. The only thing that moved them was an excavator, which we used to grub the stump and the full root mat out of the bank before any piles went in. That sequencing is not optional, for two reasons. First, a timber pile line can only be driven straight and true once the ground is clear — try to drive a post into a buried root and it walks off line, and a wandering pile line is a wall that never looks right and never seats evenly. Second, any root left buried behind the finished wall becomes a slow problem: it rots, leaves a void, and that void becomes a path for soil to pull through the face. Spending the hours to remove it cleanly up front is what makes the rest of the wall straightforward.
Below is the as-built material set, straight off the contract. This is a vertical-board timber bulkhead with a buried anchor system — a proven configuration for a short freshwater wall. Backfill behind the wall is excluded from the linear-foot price and quoted separately.
The wall was built from land with a standard timber crew plus an excavator — no barge and no pile rig, because the yard runs flat to the water. The work broke into three phases.
Phase 1 — Site Preparation and Clearing. The crew mobilized to the lake, marked the coastline along the full 100 LF to set the wall alignment, and staged materials on the lawn. Then the gating task: the excavator grubbed the tree stump and the root mat out of the bank completely, clearing a straight, clean line for the pile work. Underground and personal utilities were the owner's to mark per the contract before digging began.
Phase 2 — Structural Installation. With the bank clear, the 6x6 wooden wall piles were driven on line, and the 3x6 vertical boards were set between and against them to form the continuous retaining face. The external facing board (waler) was run the full length to lock the sheeting together. Behind the wall, the internal anchor piles were set back into undisturbed soil, and the threaded tie rods were run from the wall to the anchors and tensioned so the wall is held actively, not just leaning on the embedded piles.

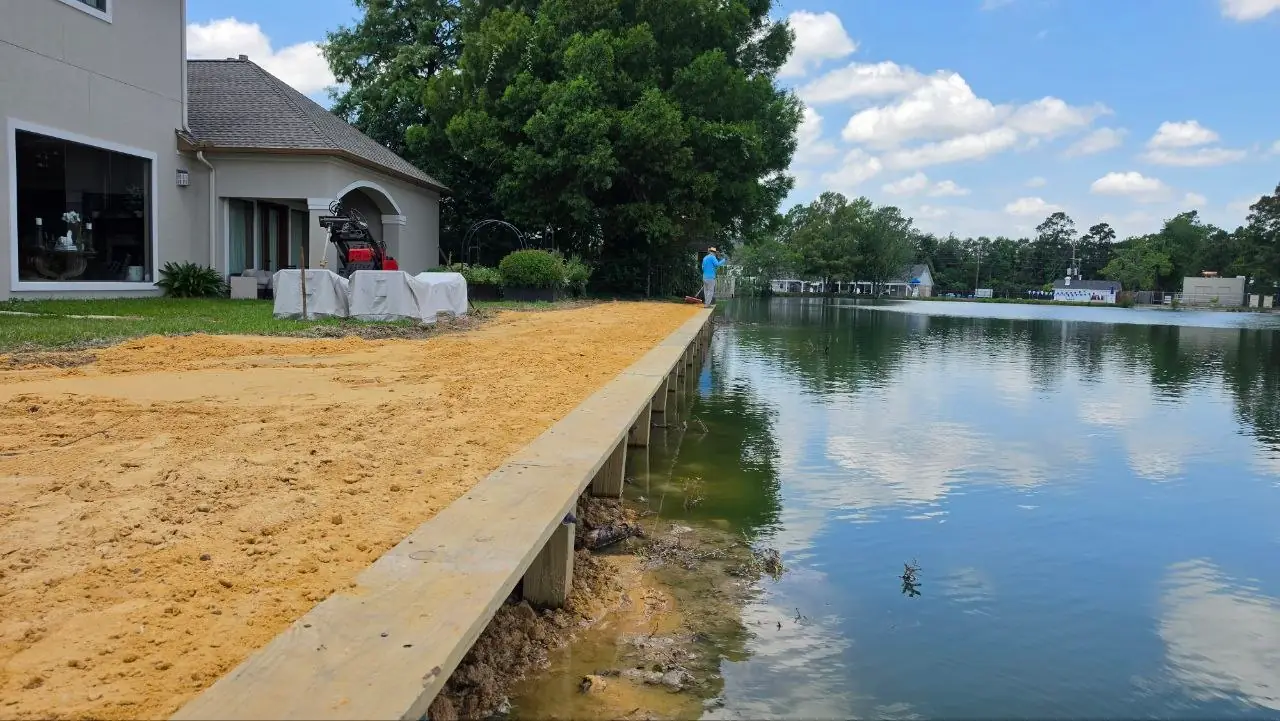

Phase 3 — Geotextile, Backfill, and Restore. Geotextile filter fabric was secured behind the timber face to keep soil fines from washing through the boards. The crew then placed and graded the sand backfill — the separate $3,000 line — rebuilding the lawn to a clean, level grade right up to the new cap. The result is a straight wall where a ragged, root-bound edge used to be. Here is a short walkthrough of the finished bulkhead:
For this 100 LF Houston neighborhood-lake project, the wall was built at $180 per linear foot — $18,000. That number is flat-rate and all-in for the wall itself: labor, the treated timber and hardware, the excavator, and mobilization. Sand backfill behind the wall was a separate $3,000 line, for an all-in total of $21,000. Any footage beyond 100 LF runs at the same $180 per foot. Backfill is always quoted separately because its volume depends on how far the bank has eroded — burying it inside the per-foot price would only make the wall number harder to compare.
Timber prices lower per foot than vinyl or concrete, which is exactly why it is the right answer for a short freshwater wall — you are not paying for stiffness the site does not need. To see how this fits the wider market, our bulkhead construction cost in Houston page covers per-foot ranges by material, the Houston bulkhead service overview walks through what we typically deliver, and the Houston seawall cost page covers the heavier-wall option for more exposed shoreline. Short runs and water-only-access sites land higher per foot, because fixed mobilization spreads over fewer linear feet.
The upfront price is the easy number; the more useful one is what the wall costs over a realistic ownership window. A CCA-treated timber bulkhead on a calm freshwater lake is not fighting salt corrosion or heavy tidal scour, so a properly built and well-drained wall here is a 15-to-20-year-plus structure with light, predictable upkeep.
Permitting on a private subdivision lake is different from a public reservoir, and it is worth being clear about. There is no Trinity River Authority or Army Corps reservoir permit on a contained neighborhood lake the way there is on Lake Conroe or Lake Livingston. What usually governs the shoreline instead is the homeowners or property-owners association, which has its own rules about wall type, height, and setback, and any work inside a Harris County floodplain can trigger county review. On this job the contract puts permitting and neighbor notification on the owner, so the practical advice is simple: confirm the HOA's shoreline rules and any Harris County requirements before the crew mobilizes, not after.
On this Houston neighborhood-lake project, the treated-timber bulkhead was built at $180 per linear foot — $18,000 for the full 100-foot run. Sand backfill behind the new wall was a separate $3,000 line, bringing the all-in total to $21,000. Any footage beyond 100 LF is billed at the same $180 per foot. That rate covers labor, the timber and hardware, equipment, and mobilization for a short freshwater wall with good land access; saltwater sites, tall walls, and water-only access push the per-foot number higher.
For a short wall — here the exposed face is only about three feet — treated timber is usually the most cost-effective honest answer, and that is what we recommended. At that height the earth pressure behind the wall is modest, so the structural advantages of vinyl or poured concrete are not worth their higher price. Timber also installs fast with a standard crew and no heavy pile rig. Vinyl earns its premium on taller walls or where a 50-year maintenance-free life is the priority, and concrete makes sense for the heaviest, most exposed shorelines. On a calm freshwater neighborhood lake with a three-foot wall, timber is the right tool.
This was the real challenge on the job. A large tree stump and a dense mat of springy roots had grown into the eroding bank and were holding the failing shoreline in a ragged line. Hand tools could not cut them out — the roots simply flexed and pulled back. We brought in an excavator to grub the stump and root mat out completely before any piles went in. That step matters for two reasons: the pile line can only be driven straight and true once the obstructions are gone, and leaving roots buried behind the wall would let them rot over time and open voids that pull soil through the face.
A properly built CCA-treated timber bulkhead on a calm freshwater lake typically lasts 15 to 20 years or more, because there is no saltwater corrosion or heavy tidal scour working against it. Lifespan comes down to the quality of the treated lumber, how well the wall drains, and whether the geotextile behind it keeps fines from washing through. Annual inspection of the cap and waler, plus prompt attention to any leaning section, will get a timber wall to the long end of that range.
It depends on the water body, and a private subdivision lake is different from a public reservoir. There is no Trinity River Authority or Army Corps reservoir permit here the way there is on Lake Conroe or Lake Livingston, but most neighborhood lakes are governed by a homeowners or property-owners association with its own shoreline rules, and any work in a Harris County floodplain can trigger county review. Under our contract the owner is responsible for pulling permits and notifying neighbors — so confirm the HOA and Harris County requirements before the crew mobilizes.
No. The $180 per linear foot covers the wall itself — labor, timber, hardware, and equipment. Sand backfill behind the finished wall is always quoted as a separate line, here $3,000, because the volume of fill depends on how far the bank has eroded and how much grade has to be rebuilt. Keeping backfill separate keeps the per-foot wall price honest and comparable from job to job, instead of burying a variable cost inside it.
Shore Protect Construction designs and builds timber, vinyl, and steel bulkheads across Houston's neighborhood lakes, inland Texas, and the Gulf Coast. Honest material recommendations, clean site work — including the stump-and-root clearing most crews skip — and turnkey installation by a team with over 20 years of marine construction experience. Request a free site estimate and we'll put a real number on your shoreline.
