By Roman Ross — Marine Construction Estimator, Shore Protect Construction
The owner of a lakefront lot in Grayslake sent us three photographs and a description that did most of our diagnostic work for us. Fifty-six feet of cut stone edging along his shoreline was tipping into the water. He had already worked out why: the stones had been set on gravel, the gravel had washed out, and the wall was sliding into the lake. Then he asked the one question that actually decides what this repair costs — whether the rest of that gravel should be pulled out, or whether you build on top of what is left. He was right about the cause, and the answer to his question is the whole job. Here is what we found, what we quoted, and why the rock we put in front of the wall matters more than the wall itself.
Bottom line: In Grayslake, IL in 2026, repairing a 56-foot dry-laid stone retaining wall on a private lake ran $17,200 — about $218.80 per linear foot — as a fixed-scope package covering demolition and haul-off of the failed bedding, a new filter-fabric and angular-stone base, resetting the existing stone, a riprap toe berm, and backfill with sod restoration. The wall was not failing because the stone was bad; it was failing because rounded pea gravel with no filter fabric underneath had been washing out from under it for years.

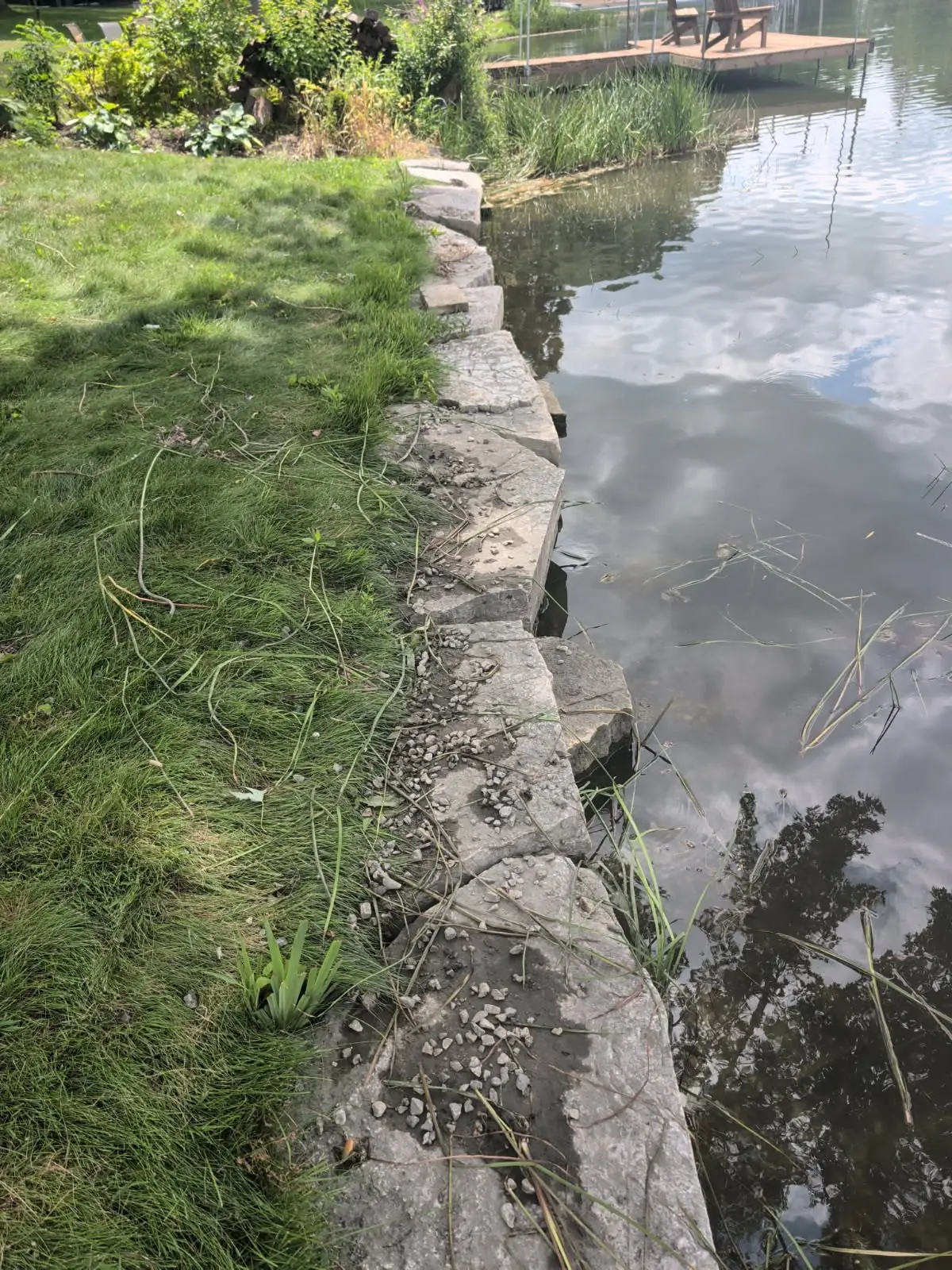

This is a private freshwater lake in Grayslake — quiet water, paddle boats, small private docks, no commercial traffic and no meaningful fetch. The shoreline protection is a single dry-laid course of cut limestone slabs, each roughly three to four feet long, eighteen inches wide and ten to twelve inches thick, standing about one foot above the waterline with lawn running right up to it. It is the kind of low stone edging that reads as landscaping until the day it stops working.
Two details in the photographs told us everything. The slabs had rotated outward rather than settled straight down, and the joints between them had opened into visible gaps — that is a base problem, not a stone problem. Then the close-up: loose rounded gravel lying submerged at the foot of the wall, and more of it spilled across the top of the slabs where it had migrated. There was no filter fabric anywhere. Access, at least, was the easy part — flat lawn runs to grade behind the wall, so machines work entirely from land with no barge and no crane. If you want to see how a low lakefront wall like this compares on price with a conventional tall wall in the area, our Lake County retaining wall cost guide breaks the numbers out by material.
The diagnostic photograph is the third one, taken looking straight down at the foot of the wall. Under the face of the slab, where compacted bedding should be, there is open water and a scatter of rounded pea gravel resting on the lake bottom. That gravel used to be the base. Nothing above it moved because the stone was weak; it moved because everything holding it up had been carried away a handful of grains at a time.
This is why the repair is worth doing properly rather than restacking the stone. Reset the same slabs on the same rounded gravel with no fabric and no toe protection, and the lake simply restarts the process it has already finished once.
Replacement was never the right call here. Cut limestone does not wear out on a human timescale — it outlives its bedding by decades. Every slab we could see was intact, square and reusable. Tearing out sound stone to buy new sound stone would have added thousands of dollars and fixed nothing, because the failure was entirely underneath it. We quoted the job to reuse roughly ninety percent of the existing stone, carrying an allowance for replacing about ten feet of it where pieces prove cracked once lifted.
That is the honest caveat: the true reuse rate is not knowable until the stones come off the bank. We lift them, lay them out on the lawn in order, and if more of them are cracked than the allowance covers, we show the owner before anyone orders replacement stone. The same logic drove the railroad-tie retaining wall replacement we priced in Fulshear, where the material genuinely was spent and full replacement was the only defensible answer — and it is the mirror image of the concrete-versus-rip-rap comparison we ran on an Illinois drainage channel, where the question was which armour to put in front of a wall rather than whether to rebuild it. Read the failure before you price the fix.
Three things were missing when this wall was first built, and all three are cheap. The bedding was rounded pea gravel, which does not lock together — it rolls and shifts under load instead of wedging. There was no geotextile filter fabric, so nothing separated that gravel from the soil or stopped water from carrying either one away. And there was no toe restraint in front of the course, so the base was exposed to the lake on its most vulnerable face. Wave action and seasonal water-level swing did the rest, pumping the bedding out grain by grain until the stones had nothing left to bear on. Once bearing goes, gravity does the rest and the slabs rotate lakeward.
So the repair inverts all three. Every bit of the old pea gravel is excavated to firm subgrade and hauled away — leaving any of it would leave a soft spot for the same process to restart. Geotextile filter fabric goes in first, doing the job a coffee filter does: water passes, soil and stone do not. The base is rebuilt in angular crushed stone compacted in layers rather than dumped in one lift, because compaction in layers is what actually makes it stay. The slabs are then reset with a slight batter back into the bank so gravity works with the wall rather than against it. Finally, a keyed Class B riprap toe berm goes in over fabric on the water side. That toe is the piece homeowners skip and the piece that decides the lifespan — it absorbs wave energy before it ever reaches the new bedding.
This is the as-quoted set for the 56-foot run. The bill is deliberately unglamorous: almost all of the money buys base rebuilding and toe protection, not decorative material, because the existing stone is retained.
Three working days with a four-person crew: a foreman, an equipment operator and two laborers. The machine is a five-ton compact excavator with a hydraulic thumb — large enough to lift slabs that weigh eight hundred to twelve hundred pounds, small enough not to wreck an established lawn. Protective mats go down before anything tracks across the turf.
Phase 1 — Containment and demolition. Silt fence is staked along the waterline first, so nothing we disturb ends up in the lake. The slabs are then lifted out one at a time and laid out on the lawn in sequence, so each goes back where it came from. All of the failed pea gravel is excavated down to firm subgrade and hauled off site.
Phase 2 — Rebuilding the base. Geotextile filter fabric is laid into the trench, then angular crushed stone goes in and is plate-compacted in layers. This is the step that was skipped when the wall was originally built, and it is the least visible and most important part of the job.
Phase 3 — Reset, toe protection and restoration. Each slab is reset true with a slight backward batter into the bank, with replacement stone used only where pieces are cracked. The Class B rip rap toe berm is keyed in over fabric on the water side. Drainage stone and topsoil go in behind the wall, fresh sod goes down over the working strip, and the site is cleared.
The quoted figure was $17,200, or about $218.80 per linear foot, as a fixed-scope package. That number is not wall-only: it carries materials, crew, equipment, getting the team and materials to the property, haul-off of the failed gravel and any broken stone, the permit allowance, and the backfill and sod restoration behind the wall. There is no separate demolition invoice arriving afterwards. The two things that can move it are the stone reuse rate and what turns up behind the wall once it is open, and both get shown to the owner before anything is ordered.
One note on units, because it trips people up. A low shoreline wall is priced per linear foot of shoreline, not per square foot of wall face. At one foot high there is almost no face area, but every bit of the work — excavation, fabric, compacted base, toe rock, restoration — sits below and in front of it. Square footage is simply the wrong denominator for this kind of job. For conventional taller retaining walls, where face area really does drive the material take-off, repair in Illinois generally runs $25–$75 per square foot of face; you can sanity-check your own wall against that with our retaining wall cost calculator. For local context on materials and soils, see our Lake County retaining wall contractor page, the wider Lake County moraine and Chain O'Lakes service area, or our guide to stone retaining walls generally.
Judge this repair by the toe, not by the stone. The limestone slabs on this Grayslake shoreline will still be there long after everyone involved has stopped thinking about them; what has a lifespan is the bedding underneath and the protection in front. The original wall failed not because it was built from the wrong material but because it was built without the two-dollar-a-square-yard component that keeps a base in place. Rebuilding on fabric and angular stone repairs what already broke. Adding the toe berm is what stops the clock from restarting.
Repairing an existing shoreline structure in kind is normally treated as maintenance rather than new construction, and that is a materially lighter path than putting a wall where none stood before. On a private lake in Grayslake there is no federal navigable-waters trigger, and Illinois DNR Office of Water Resources involvement is unlikely. What can apply is the Lake County Watershed Development Ordinance, administered by the Stormwater Management Commission, along with Village of Grayslake review — and on many private lakes the lake association has its own approval process that runs alongside the municipal one. We carry a permit allowance in the quote rather than a guess at a fee, and if the association handles authorisation that allowance comes straight off the price. We do not publish fee figures we have not been quoted.
In almost every case we see in Grayslake, IL, the stone itself is fine and the base underneath it is gone. Dry-laid stone set on rounded pea gravel with no filter fabric has nothing holding it in place: wave action and seasonal lake-level swing slowly pump that gravel out from under the course. Once the bearing is lost, each stone rotates outward and walks toward the water. The tell is the old bedding gravel sitting submerged at the foot of the wall, which is exactly where it washed to.
It all comes out. This was the question the Grayslake, IL owner asked us directly, and the answer is not a judgement call. Rounded pea gravel does not lock together, and any of it left in place is a soft spot the lake will find again. We excavate the failed bedding down to firm subgrade, lay geotextile filter fabric, and rebuild the base in angular crushed stone compacted in layers. Angular stone wedges and stays put where rounded gravel rolls.
This 56-foot lakefront job in Grayslake, IL was quoted at $17,200 as a fixed-scope package, which works out to about $218.80 per linear foot. That figure covers materials, crew, equipment, mobilisation, haul-off of the failed gravel and any broken stone, the permit allowance, and the backfill and sod restoration behind the wall. A low shoreline wall is priced per linear foot of shoreline rather than per square foot of face, because at one foot high there is almost no face area but all of the work sits below it.
Cut stone outlives its bedding by decades, so on the Grayslake, IL job we expect to reuse roughly ninety percent of it and carried an allowance for replacing about ten feet. Each slab is lifted with a machine and laid out on the lawn in order so it goes back the way it came. The real reuse rate is only knowable once the stones are off the bank, so we show the owner what we find before ordering any replacement stone.
Repairing an existing shoreline structure in kind is generally treated as maintenance rather than new construction, which is a much lighter path than building a wall where none stood. For a private lake in Grayslake, IL there is no federal navigable-waters trigger, and Illinois DNR Office of Water Resources involvement is unlikely. What can apply is the Lake County Watershed Development Ordinance administered by the Stormwater Management Commission, plus Village of Grayslake review and, on many private lakes, the lake association's own approval. We carry a permit allowance in the quote and it comes off the price if the association handles authorisation.
The stone was never the problem and will outlast everyone reading this. What determines the lifespan in Grayslake, IL is whether the toe is protected. Rebuilding the base on filter fabric and angular stone fixes what already failed, but without a riprap toe berm in front of the course the lake goes back to work on the new bedding the same way it worked on the old. The toe rock absorbs wave energy before it reaches the base, which is the difference between a repair measured in a few seasons and one measured in decades.
We rebuild failing shoreline walls across Lake County and the Chain O'Lakes — stone, timber, concrete block and rip rap — from Grayslake and Lake Villa through Antioch, Fox Lake, Wauconda and Wheeling. Send photographs of what is happening at your waterline and we will tell you whether the stone can be reset or the wall genuinely needs replacing, before anyone quotes you a number. Get in touch here.
