By Roman Ross — Marine Construction Estimator, Shore Protect Construction
A homeowner on a backyard slope in Fulshear, Fort Bend County, Texas asked us to price the replacement of an old railroad-tie retaining wall that had finally given up. The wall runs about 170 feet with a 90-degree turn at the property line, stands roughly six feet on average and close to eight feet at its tallest, and tapers down to a single tie at each end — somewhere around 1,000 square feet of timber face holding back the yard. The creosote ties are rotting, the wall is leaning out, one whole section has collapsed onto the grass, and the wire fence that kept the family dog in the yard has gone down with it. The owner's question was the practical one: replace it with what, and what does a wall like this actually cost? Below is the wall we scoped — a new treated-timber structure with proper anchoring and drainage — the $249 per linear foot we landed at, and the one line we deliberately left out of the price.
Bottom line: Replacing this 170-foot Fulshear railroad-tie wall with a new treated 2×12 timber wall — deadman-anchored, drained, and carrying a 3-foot dog fence on top — lands at $249 per linear foot, $42,330 all-in for the 2026 job. That price includes demolition and haul-off of the old creosote ties, the drainage stone directly behind the wall, the permit, and mobilization. It deliberately excludes the yard backfill — the stabilizing clay and topsoil to fill the eroded low spots, the final grade sculpting, and re-sodding — because the real dirt volume cannot be known until the old wall is out. That work is quoted as a separate change order against actual quantities, not guessed at up front.

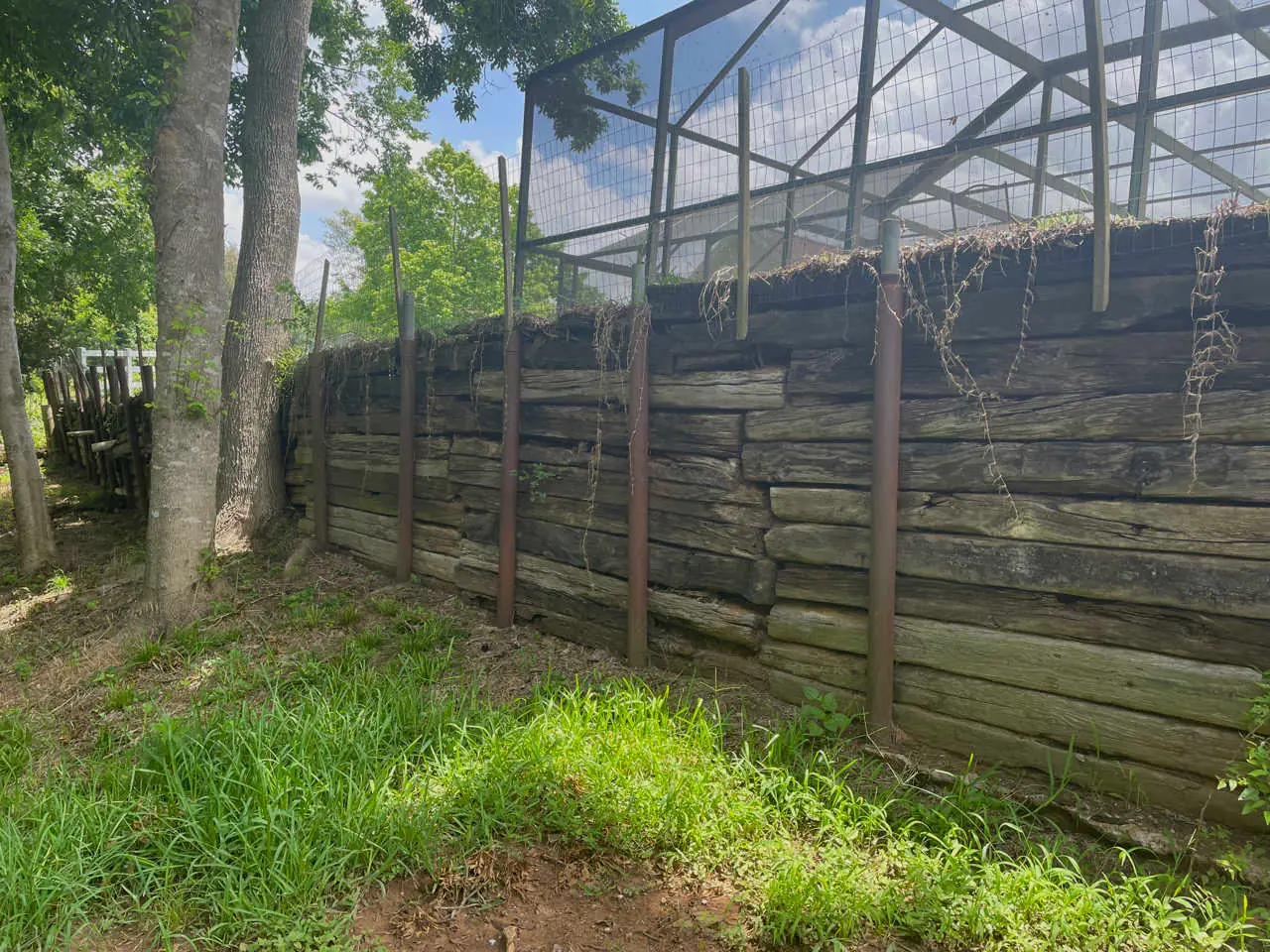

The lot is inland, freshwater, on a graded backyard slope — no canal, lake, or coastal zone in play, which keeps this a straightforward land-side retaining wall. The existing structure is a stacked creosote railroad-tie wall, six feet tall on average, close to eight at the high point, tapering to a single tie at each end and turning a 90-degree corner where it meets the property line. Vertical steel pipes were driven in front of it years ago as a last-ditch brace, and a wire fence runs along the top to contain the family's dog.
Every failure here points the same direction. The ties are rotting from the inside — creosote slows decay, it does not stop it, and these are decades past their service life. The wall is rotating outward at the top, leaning into the yard because the soil behind it has slumped and the wall has lost its grip on the slope. One section has already collapsed, with loose ties lying in the grass. And the soil behind the run has eroded into low spots, which is both a cause of the failure and a problem the homeowner wants solved. Two site features complicate the work: a wire-mesh animal enclosure sits directly on top of part of the wall, and a cemented-in steel drill-pipe casing stands at the base of the run — both have to be worked around rather than simply removed.
The first honest question was whether any of the old wall could be saved. It cannot. You can bolt a new tie onto a sound one, but you cannot anchor anything to wood that is rotting and to a wall that is already leaning — a patch just hangs good timber on bad and rotates with it. The owner was open to alternatives to railroad ties from the start, which made the real decision a material choice: rebuild in new treated timber, or step up to a segmental concrete block (SRW) system.
We priced both and recommended treated timber. New ground-contact treated 2×12 lumber keeps the warm timber look the owner wanted, mills to consistent dimensions so the wall goes up straight and true, and fastens and anchors far more cleanly than creosote ties — which are increasingly hard to source clean and a regulated material to dispose of. A block system lasts longer and we will build it when an owner wants it, but it costs more and changes the appearance. For this backyard, treated timber was the best balance of look, cost, and a clean install. For owners weighing the same call elsewhere, our wood retaining wall guide covers timber wall design, and for the heavier-duty end of the spectrum see our segmental block wall rebuild in League City, where reuse of existing block was the deciding factor.
The collapsed section — ties down in the grass and the fence pulled over with them. This is the failure mode that takes a patch repair off the table: there is nothing sound left to anchor to.
The old tie wall failed for two reasons that the new wall is built to fix: it was never properly anchored back into the slope, and water had nowhere to go. So the new wall is not just a taller stack of timber. It is a treated-timber face — vertical timbers set as posts with horizontal 2×12 lagging between them, the modern equivalent of the old tie wall — tied back into the slope with 40 buried 6×6 deadman anchors, spaced more tightly through the tall center section where the soil load is highest. The deadmen turn the wall and the backfill into one connected mass, so the slope holds the wall up instead of pushing it over.
Behind the face we build a drainage column: a layer of #57 crushed stone wrapped in 8-ounce geotextile filter fabric, with six to ten weep and French drains to carry water out through the wall. That is the part the original wall never had — trapped water behind a timber wall is what rots the wood and loads the structure until it leans. Here is where we draw the scope line honestly. The structural drainage stone directly behind the wall is in the price, because we know that quantity. The bulk yard fill — importing stabilizing clay and topsoil to bring the eroded low spots back up, sculpting the final grade for drainage, and re-sodding — is not in the $42,330, because the true volume is unknown until the wall comes out and we can see the voids. We quote that as a change order against measured quantities, written into the contract. It is the same discipline we apply on coastal jobs with hidden voids, like the Copano Bay seawall cap repair, where backfill was its own line for the same reason.
The new wall is all new material — none of the old creosote ties are reused. The inventory below is what the foreman sources against, and it splits cleanly into the structure, the drainage, and the fence the dog needs.
The tall center run, with the animal enclosure sitting on top of the wall and an old drain pipe at the base. Both stay in place, so the demolition and rebuild have to work around them rather than clearing the site flat.
The job runs about 10 working days with a crew of one foreman, one marine carpenter, and two laborers, plus an equipment operator on the excavation days. Equipment is a mid-size excavator for demolition and for cutting the deadman trenches, and a plate compactor for the drainage column and backfill lifts.
Phase 1 — Demolition & Haul-Off. The animal enclosure on top of the wall is protected and supported in place, and the work line is staked along the existing run. The failing wall comes down in a controlled sequence and the creosote ties are loaded out and hauled to an approved disposal facility — creosote is a regulated material, so this is a real disposal line, not a dumpster run. The cemented-in steel drill pipe at the base is left in place; whether it gets reused as a fence terminal post is confirmed on site.
Phase 2 — Posts, Timber & Deadman Anchors. The new treated-timber posts are set on line and to grade — average six feet, up to eight at the center, tapering at the ends and turning the 90-degree property-line corner. The 2×12 lagging goes up between them, pinned and spiked, and the 40 deadman anchors are trenched back into the slope and connected to the wall face. The tall center section gets the tighter deadman spacing, because that is where the soil pushes hardest.
Phase 3 — Drainage, Fence & Cleanup. The 8-ounce filter fabric and #57 drainage stone go in directly behind the wall, with the weep and French drains tied in to carry water out. The 3-foot welded-wire fence is installed along the top with its posts set into the wall structure so it stays tight. The work corridor is cleaned, debris is removed, and disturbed ground along the wall line is spot re-sodded. The bulk yard fill and final grade sculpting follow as the separately-quoted change order, once the true dirt volume is measured.
For this 170-foot Fulshear backyard wall, the number is $249 per linear foot, $42,330 all-in. That per-foot rate is flat across the run and covers labor, the new treated-timber structure, the deadman anchoring, the drainage column, the dog fence, demolition and creosote haul-off, the permit, and mobilization. The one thing it does not cover — and we say so plainly — is the yard backfill, which is a separate change order priced against the real dirt volume once the old wall is out.
Want the same math for your own slope? Enter your wall length and height into our free retaining wall cost calculator for a 2026 ballpark.
Fulshear sits at the western edge of the Greater Houston metro in Fort Bend County, and timber-wall pricing there tracks closely with the nearby Katy market. For broader local context, our Katy retaining wall cost guide covers area ranges across timber, block, and stone walls, and our Katy retaining wall service overview walks through what we typically deliver on a residential job this size. A wall with a fence on top is a common pairing in this area; our retaining wall and fence guide covers how the fence is detailed into the wall.
Upfront price is the easy number. The one that matters over the life of the wall is what the timber actually buys you — and how the excluded backfill fits into the honest total.
A residential retaining-wall replacement on a private lot in the Fulshear / Fort Bend County area takes a standard permit, which we carry in the project price and file ourselves. This is a freshwater, inland lot — there is no waterway, canal, or coastal-zone structure here, so no marine or coastal permit is in play, which keeps the review simple.
The one open item worth naming is wall height. The tallest part of this run is close to eight feet, and retaining walls above a set height threshold can require an engineer's stamped design before the permit is issued. We flag that as a possible add-on rather than burying it, because on a tall residential wall it is the most common surprise. If the jurisdiction calls for the stamp, it is a known engineering fee, not an open-ended unknown — and bidding the wall straight keeps the permit review clean.
Because the failure on this wall is structural and the material is at the end of its life. The creosote ties are rotting from the inside, the wall is leaning out under soil pressure, and one section has already collapsed onto the lawn. Once ties soften and the wall starts to rotate, there is nothing solid left to anchor a repair to — bolting a few new ties onto rotten ones just hangs good wood on bad. The soil behind the wall has also slumped, which means the wall lost its grip on the slope. The honest fix is to take the old wall out, re-establish the line and the anchoring, and build a new wall that is engineered to stay put. Patching buys a season or two; a replacement resets the clock.
Railroad ties are creosote-treated, increasingly hard to source clean, and a regulated material to haul off — the very reason this wall is a disposal headache today. New ground-contact treated 2×12 timber gives the same warm timber look the homeowner wanted, mills to consistent dimensions so the wall goes up straight, and is far easier to fasten and to anchor with deadmen. We also priced a segmental concrete block (SRW) alternative, which lasts longer but costs more and changes the look; the homeowner chose treated timber as the best balance of appearance, cost, and a clean install. The result is a $249-per-linear-foot wall instead of a more expensive block system.
A deadman is a buried timber anchor that runs back from the wall face into the soil and ties the wall to the slope behind it. On a wall up to about eight feet tall, the face alone cannot hold back the weight of the saturated soil pushing on it — that push is exactly what rotated and toppled the old tie wall. The deadmen turn the wall and the soil into one connected mass so the slope holds the wall instead of shoving it over. We set 40 of them along the 170-foot run, more closely spaced through the taller center section where the load is highest. Skipping the deadmen is the single most common reason a good-looking timber wall fails early.
Because the amount of dirt this yard actually needs cannot be known until the old wall is out. The photos show the soil behind the wall has eroded and slumped, leaving low spots — but whether that is a few yards of fill or a truckload of stabilizing clay and topsoil only becomes clear once we demolish the wall and see the voids. Rather than pad the quote with a guess, we hold the drainage stone directly behind the wall in the $42,330 price (that is structural and known), and we quote the yard fill, final grade sculpting, and re-sodding as a separate change order priced against the real volume. It is the honest way to handle a hidden quantity, and it is written into the contract, not buried in a footnote.
Yes, and on this job it is part of the scope. The homeowner needs a three-foot welded-wire fence along the top of the wall to keep a dog in the yard, so we build the fence into the wall rather than bolting it on afterward — the fence posts are set as the wall goes up, tied to the timber structure, so they do not work loose the way a fence driven into disturbed backfill would. A retaining wall with a fence on top is a common combination; the key is anchoring the posts to the wall, not to the soft fill behind it. We cover the detailing on our retaining-wall-and-fence guide.
For a residential retaining-wall replacement on a private lot in the Fulshear / Fort Bend County area we carry a standard permit and handle the filing — it is in the project price. The one thing to watch is height: the tallest part of this wall is about eight feet, and walls over a set height threshold can require an engineer's stamped design. We flag that as a possible add-on rather than hiding it, because it is the most common surprise on a tall residential wall. This is a freshwater inland lot, not a coastal or waterway structure, so there is no marine or coastal-zone permit in play.
Shore Protect Construction designs and replaces timber, block, stone, and gabion retaining walls across Fulshear, Katy, and the Greater Houston metro — including failed railroad-tie walls, walls that need a fence on top, and slopes with drainage problems. We anchor walls properly with deadmen, build in real drainage, and quote hidden dirt work as an honest change order instead of a padded guess. Request a free site estimate for your wall and we will put a real number on the replacement.
