By Roman Ross — Marine Construction Estimator, Shore Protect Construction
The owner of a Copano Bay canal-front property in Rockport, Texas called about a seawall cap that was coming apart. The poured concrete cap along the top of the wall had cracked clean through, separated into sections, and started tilting toward the water — the kind of failure that looks alarming because it is moving, but that usually points to a fixable problem underneath. The wall itself, an older thin-concrete seawall, was still standing. The question was the one every waterfront owner faces at this point: is this a cap repair, or is the whole wall done? Below is the full project — what actually caused the cap to fail, why we fix the soil before we fix the concrete, the as-quoted scope and materials, the phase-by-phase build, honest 2026 pricing, and what permitting on Copano Bay looks like for a repair.
Bottom line: On a Copano Bay canal in 2026, a 75-foot concrete seawall cap repair runs $157 per linear foot for the new cap — $22,038 all-in as a fixed-scope package that includes demolition, void backfill, the new reinforced cap, permit, and mobilization. The cap cracked because soil washed out behind the wall and left it unsupported, so the real repair is two parts: fill and compact the voids behind the wall, then pour a new dowel-tied reinforced cap on top of solid ground. Fix only the concrete and the new cap fails the same way.
The property is a private canal-front lot in Rockport, in Aransas County on the Texas Coastal Bend, with the seawall fronting a tidal canal that opens to Copano Bay. This is saltwater — the wall sees tidal movement, brackish water, and the chloride exposure that comes with the bay, all of which matter for both why it failed and how we rebuild it. The existing structure is an older poured-concrete seawall with a concrete cap beam across the top, running about 75 linear feet along the canal between a composite-decked dock on one end and the upland patio behind it.

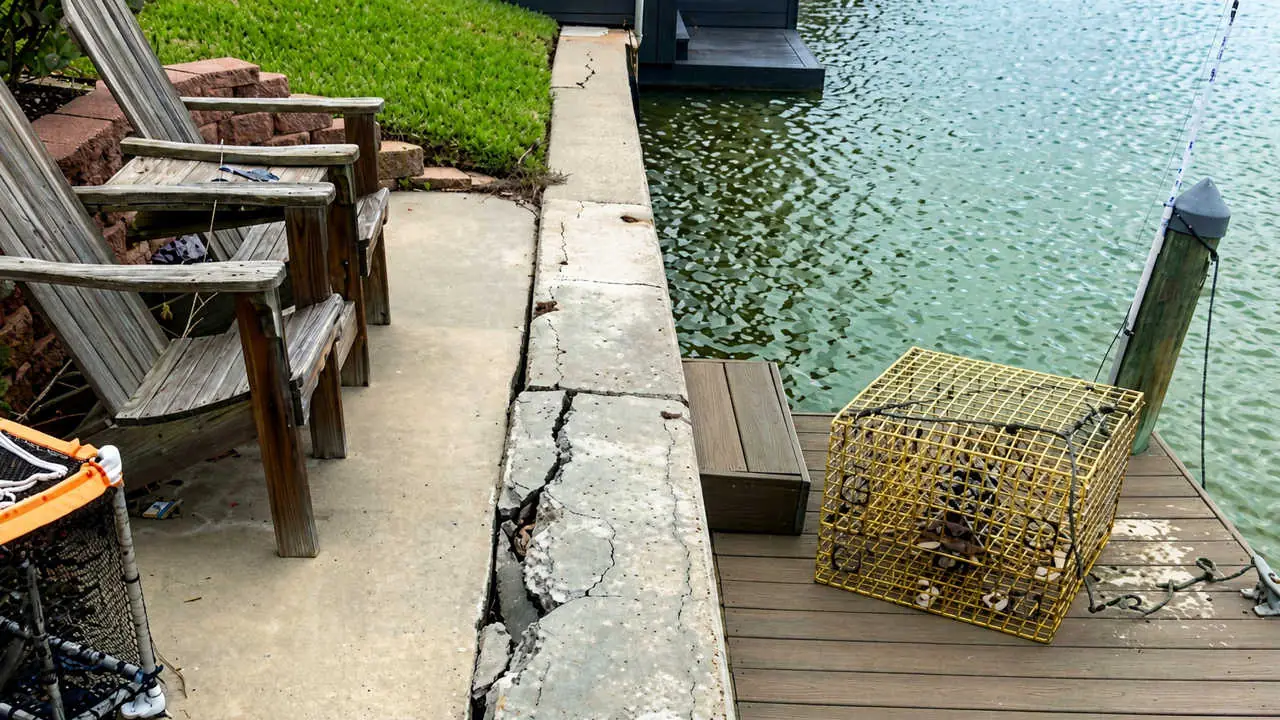

The cap is the problem, and it is an obvious one. It has cracked through in multiple places, the sections have separated, and the run nearest the water has rotated downward toward the canal. The tell that explains all of it is behind the wall: a second crack runs parallel to the cap in the concrete patio slab a couple of feet inland. That is the fingerprint of soil loss — the ground behind the wall has been washing out, and as the back edge of the cap lost its support it settled and broke. Two practical site facts shaped the bid. First, land access is good — the crew works off the patio and yard, so no barge or water-only staging is needed. Second, the composite dock at the end of the run has to be protected through demolition and the pour. For local context on what coastal seawall work runs in this market, our Rockport seawall cost page covers the per-foot ranges; the rest of this post is one real ticket.
The honest first question on any failing seawall is whether you are looking at a cap problem or a wall problem, because the price gap between the two is enormous. A full thin-concrete seawall replacement on a saltwater canal is a tear-out-and-rebuild job that runs many times the cost of a cap repair. So before quoting either, we read the failure. Here the wall body below the cap was still plumb and holding line; the movement was concentrated in the cap and tied directly to the void behind it. That pattern says cap repair, not replacement.
What we will not do is pour a cap and call it finished while ignoring the void, and that is the difference between a repair that lasts and one that fails on the same schedule as the original. The one open item we flagged to the owner up front: until the old cap is removed, the stem of the wall directly beneath it cannot be fully inspected. If it turns out the wall itself is spalling or losing section, a cap-only repair would be the wrong spend — so the quote is written as a cap-and-backfill package with that contingency stated, not buried. Repairs like this are their own discipline, distinct from new construction. For how we approach the same fix-the-cause logic on other coastal repairs, see our timber pier repair on Lavaca Bay, and for cap-specific work on a different wall type, our segmental retaining-wall cap reattachment in League City.
The most important work on this job is invisible once it is done — it is behind the wall, not on top of it. The cap failed because tidal and storm water has been moving in and out behind the wall and carrying soil fines out through gaps in the joints, hollowing out a pocket of unsupported ground. Concrete is strong in compression but it cannot bridge an open void; with nothing under its back edge, the cap rotated and cracked. So the repair starts by excavating behind the wall to expose those voids, then rebuilding the ground with clean fill sand and #57 crushed stone compacted in lifts, with 8 oz geotextile filter fabric set behind the wall so water can drain without taking fines with it.
Only then does the new cap go on, and it is tied in so it acts as one piece with the wall rather than just sitting on it. We drill and epoxy-set #4 rebar dowels into the existing concrete wall on roughly 16-inch centers, tie a reinforcing cage of #5 longitudinal bar and #4 stirrups to those dowels, form the cap, and pour 3,000 PSI marine-grade concrete. The dowels are what keep the new cap from becoming the next loose slab. In a saltwater setting the reinforcement detailing matters — adequate concrete cover and corrosion-resistant bar are what give a coastal cap its service life, which is why this is not a bag-mix-and-trowel job.
Below is the as-quoted material set, straight off the client estimate. Demolition and backfill are part of the fixed-scope package total; no individual line-item prices are shown here.
The crew is a foreman, a marine carpenter, and two laborers — four on site. The work runs about five working days, and the timeline assumes the repair is confirmed as in-kind maintenance before mobilization. The build breaks into three phases.
Phase 1 — Demolition & Site Preparation. The crew mobilizes to the canal-front property with land access off the patio. The work line is marked and the adjacent composite dock is protected. The failed concrete cap is saw-cut into manageable sections and removed with a compact excavator; the debris is hauled off and disposed. With the cap off, the top of the wall stem is inspected before any new work is committed.
Phase 2 — Void Repair & Structural Cap. The soil behind the wall is excavated to expose the washed-out voids. Clean fill sand and #57 crushed stone are placed and compacted in lifts to rebuild a stable, drainable base, with geotextile fabric set behind the wall to stop future washout. #4 rebar dowels are drilled and epoxy-set into the existing wall, the cap cage of #5 longitudinal bar and #4 stirrups is tied to them, forms are set true to line, and 3,000 PSI marine-grade concrete is placed and finished.
Phase 3 — Cure, Seal & Cleanup. The new cap is cured, control and construction joints are sealed, and a curing compound is applied to protect the surface. Backfill behind the cap is brought flush and compacted, the patio edge and dock are reinstated, equipment paths are graded back, and the crew performs a final walkthrough with the owner.
For this 75 LF Copano Bay cap repair, the quote came in at $157 per linear foot for the new cap, $22,038 total. The total is a fixed-scope repair package: it covers labor, materials, the dewatering pump, demolition and disposal of the old cap, excavation and compacted void backfill behind the wall, the permit, and mobilization. The per-foot cap figure deliberately excludes demolition and backfill, because on a short repair those are large fixed costs that would distort the linear-foot number — a standard the whole estimate follows so the cap rate stays comparable across jobs. Payment is structured as a simple 50% deposit and 50% on completion.
Pricing your own coastal wall? Our free seawall cost calculator puts a per-foot number on a repair or replacement by material and exposure. To see how this job fits the wider market, our Rockport seawall repair and construction cost page covers local per-foot ranges by material, and the Rockport seawall service overview walks through what we typically deliver on Aransas and Copano Bay shorelines. Short runs under about 80 feet, like this one, land higher per foot than long walls because mobilization and pour setup spread over fewer linear feet.
The reason this repair is worth doing right is that, done right, it lasts. A properly dowel-tied, reinforced concrete cap on a saltwater wall — sitting on backfill that actually drains — is a multi-decade element. The failure mode you are buying out of is not the concrete wearing out; it is the cycle of voids forming, the cap cracking, and the patchwork that follows.
Copano Bay is a coastal water of the United States, so the regulatory framework is real — but a repair is treated differently from new construction. New or expanded shoreline structures fall under the U.S. Army Corps of Engineers Galveston District (Section 10 and 404) and the Texas General Land Office, which manages the state-owned submerged land out from the line. Repairing or replacing a seawall cap in kind — same alignment, same footprint, no waterward expansion — typically qualifies as maintenance and does not trigger the full new-structure review, though Aransas County local requirements still apply. The rule that keeps a repair in the maintenance lane is staying landward of the original wall line; the moment a project pushes the structure out toward the water, it becomes a new-fill question and the permitting picture changes. We confirm the maintenance status for the specific scope before mobilizing rather than assuming it.
In most cases the cap can be rebuilt without replacing the wall, and that was the right call here. The cap is the poured concrete beam across the top of the wall — it ties the wall together and finishes the edge, but it is not the main retaining element. When the cap cracks and tilts while the wall body below it is still sound, you remove the failed cap, fix what made it move, and pour a new one. The honest caveat is that you do not fully know the condition of the wall stem until the old cap is off. On this Copano Bay job we priced a cap-and-backfill repair and told the owner plainly: if the wall below turns out to be failing too, a cap-only fix will not last, and we would show them before doing any added work.
It is almost never the concrete giving out on its own — it is the ground moving underneath it. On this canal the giveaway was a second crack running parallel to the cap in the patio slab behind the wall. That tells you soil has been washing out from behind the wall, leaving a void. With nothing supporting the back edge, the cap settles and rotates toward the water, and the concrete cracks because it was never meant to span an open gap. Saltwater canals make this worse: tidal movement and storm surge work water in and out behind the wall, carrying fines out through any gap in the joints. Fixing the cap without filling those voids just sets up the same failure again.
For this 75-foot cap repair on a Copano Bay canal in Rockport, the quote came in at 157 dollars per linear foot for the new cap, with a total project price of 22,038 dollars. That total is a fixed-scope repair package — it includes demolition and disposal of the failed cap, excavation and re-compacted backfill of the voids behind the wall, the new reinforced concrete cap, the permit, and mobilization. Demolition and backfill are kept out of the per-foot cap number on purpose, because on a short repair run those fixed costs are a big share of the job. Short runs always read higher per foot than long ones, since the crew, the pour setup, and mobilization spread over fewer feet.
Repairing an existing seawall in place is treated very differently from building a new one. Copano Bay is a coastal water of the United States, so new or expanded structures fall under the U.S. Army Corps of Engineers Galveston District (Section 10 and 404) and the Texas General Land Office, which manages the state-owned submerged land. Repairing or replacing a cap in kind — same footprint, same alignment — typically qualifies as maintenance and does not trigger the full new-structure review, but Aransas County still has local requirements and the work has to stay landward of the original line. We confirm the maintenance status before mobilizing rather than assuming it, because the moment you move the footprint waterward, the permitting picture changes.
About a week of on-site work for a run this size. On this 75-foot Copano Bay job the schedule is roughly five working days with a four-person crew: one day to saw-cut and remove the old cap, one day to open up and re-compact the soil voids behind the wall, and three days to set the dowels, tie the rebar cage, form the cap, pour it, and finish. After that the concrete needs curing time before the wall is back in full service. Land access from the patio side keeps it efficient — no barge, no water-only staging — so the crew works straight off the upland.
Because the void is what broke the cap in the first place. If you pour a beautiful new cap over an empty pocket of washed-out soil, you have rebuilt the symptom and left the cause in place — the new cap will settle and crack on the same timeline as the old one. On this job we excavate behind the wall, fill the voids with clean fill sand and number 57 crushed stone compacted in lifts, and set geotextile filter fabric behind the wall so tidal water can no longer carry fines out through the joints. That backfill and the new cap are one repair: the cap gives you a stiff, tied-together top, and the compacted, filtered backfill gives that cap something solid to sit on.
Shore Protect Construction repairs and builds concrete, vinyl, steel, and timber seawalls across the Texas Coastal Bend and the Gulf Coast. We read the failure before we quote it, fix the soil that caused it, and handle USACE and Texas GLO permit coordination on coastal work. Request a free site estimate and we'll put a real number on your shoreline.
