By Roman Ross — Marine Construction Estimator, Shore Protect Construction
A Lake Conroe homeowner called us with a clear, specific problem: the small mooring cleats screwed into the outer edge of their dock had ripped out under the load of a surf boat. The owner already knew what they wanted — heavier cleats, bolted all the way through instead of screwed into a board, and a commercial rub rail along the outer edge so the boat could be pulled up to the dock without panic the next time the water turned. This is the project: why surface-screwed cleats fail on a surf-boat dock, the thru-bolted backing-plate fix we engineered, the as-quoted scope and materials, the one-day execution plan, honest 2026 pricing on Lake Conroe, and what permitting on an SJRA reservoir actually requires for a repair like this.
Bottom line: On Lake Conroe in 2026, a 20 LF outer-edge dock upgrade — three 316 stainless commercial mooring cleats thru-bolted with steel backing plates, a localized cleat-zone deck rebuild, and a commercial UV rub rail along the lake-side edge — runs $227.50 per linear foot — $4,550 total, as a fixed repair package. The deciding detail is not the cleats themselves; it is the 10x10x1/4-inch steel backing plate on the underside, which transfers the surf-boat pull into the joist frame instead of one weathered deck board. One working day, three-person crew, no permit, no waterward expansion.

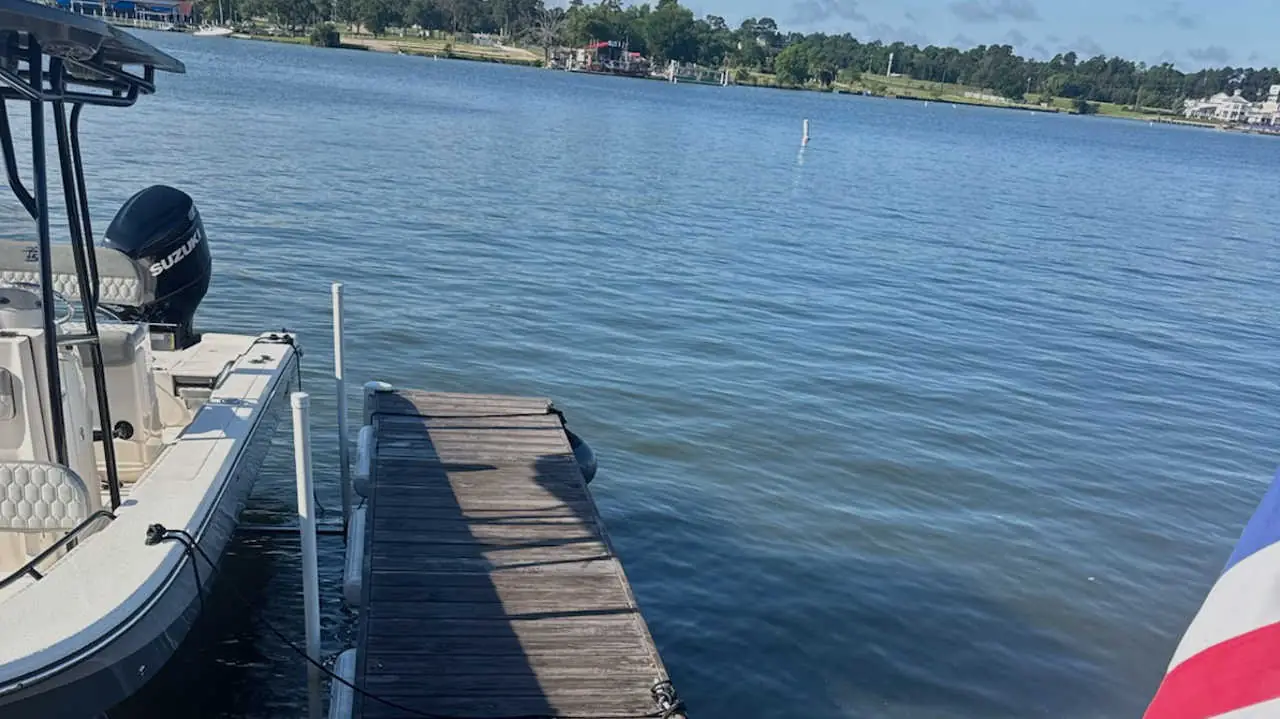

The property is a private lakefront lot on Lake Conroe in Montgomery County, Texas — a freshwater San Jacinto River Authority reservoir. The dock itself is an all-wood treated-timber structure: a walkway roughly 3 to 4 feet wide running about 20 to 25 feet out from shore, opening to a wider end platform around 8 to 10 feet by 10 to 15 feet. The decking is CCA-treated lumber that has gone the grey-brown of weathered marine wood, with some surface oxidation and mild checking but no obvious major rot signature from the photo angle. The pilings appear intact at the waterline. This is a dock that is structurally sound but has run past the easy-grip window for the screw-mounted hardware on its deck.
The asymmetry of the dock is the part that drove the scope. The inner slip side — where a center-console with a Suzuki outboard is currently moored — already has commercial bumpers and a working cleat. The outer lake-side edge, where the owner wants to be able to pull a surf boat alongside, has none of that. No cleats, no bumpers, no protection where the hull would land against the deck fascia. The previous small cleats on the outer edge were the surface-screwed ones that failed. The whole 20 LF outer-edge upgrade is essentially bringing the lake-side edge up to the same level of protection as the slip-side edge, but built for a hull with more displacement and more wake exposure.
The good news for the bid was access. The owner's lawn runs right to the dock with no slope, no fencing, no overhead utilities — the crew walks on, no barge needed. Our Lake Conroe pier cost overview covers local market ranges by structure type; the rest of this post is what those numbers look like on a real repair ticket.
The owner's instinct was right: the answer to a cleat that ripped out under load is not the same cleat with a longer screw. It is a different way of attaching the cleat to the dock. We see this failure pattern often enough that it has a recognizable signature — a small dockside cleat, three or four short deck screws, a few seasons of UV and lake-level cycling, and one bad afternoon with a heavy boat and a passing wake. The screw threads chew through the softened treated lumber, the deck board lifts, and the cleat goes with it. Reinstalling the same hardware in the same way puts the next failure on a timer.
The structural fix is to take the cleat off the deck board and put it on the dock's skeleton. Three things have to happen at the same time. First, the local deck zone where the cleat lands needs to be sound — not the original weathered board but fresh 5/4x6 CCA pressure-treated decking on top of solid framing. Second, the framing under that zone needs to be reinforced — pressure-treated 2x8 sub-deck blocking and 4x4 cleat-zone blocking added between the existing joists, so the cleat has continuous wood directly beneath it instead of a single board spanning between joists. Third, and most important, the cleat itself has to be bolted through — through the deck, through the blocking, and through a steel backing plate underneath — so the pull from a tugging surf boat lands on the plate, not on screw threads in lumber.
Reference photo: a completed treated-timber pier from a past Shore Protect project — not the Lake Conroe property. For the broader engineering behind the choice, see our evergreen pier repair services overview and our wood pier deep-dive for the longevity of a properly built treated-timber dock. For the bulkhead decision at the same waterbody — same lake, different structure — our vinyl vs wood bulkhead on Lake Conroe case study walks through how Lake Conroe's seasonal swing shapes material choice on the shoreline side of the same property.
A surf boat does not pull on a cleat the way a small fishing rig does. The wake board pulls a 4,000- to 5,000-pound hull through the water, the boat surges into the dock when someone steps off, a passing wake snatches at the mooring line, and the line transmits a sharp lateral load into whatever the cleat is screwed to. Four short screws into one weathered deck board cannot take that load reliably. Four 316 stainless thru-bolts passing into a 10x10x1/4-inch steel plate on the underside can. The plate turns four small bolt heads into a load-distribution patch the size of a dinner plate; the pull spreads across the joist frame, not into a single board.
The plate also does the job that nobody notices until something goes wrong: it stops the bolt heads from pulling through. On a cleat that is bolted through wood with only washers under the nuts, a hard yank can pull the bolt heads themselves up through the softened deck — same failure, different mode. The plate locks the entire assembly together. Combined with 316 stainless steel hardware throughout — the right grade for freshwater longevity and chemical compatibility with CCA treatment — the cleat assembly is engineered to outlast the deck boards it sits on.
Below is the as-quoted material set, straight off the client estimate. Demolition is rolled into the crew day — there is no separate demo line on a job this size. There is no backfill scope on a pier upgrade. The 316 stainless hardware grade is consistent across every fastener that touches the cleat, the rub rail, or the new deck boards.
Reference photo: a completed dock from a past Shore Protect project — not the Lake Conroe property. For the broader maintenance picture on a treated-timber dock, see our dock repair services overview, which walks through which problems are localized like this one and which become whole-dock restoration projects.
The crew is one foreman, one marine carpenter, and one laborer — three on site. The work runs about one working day. The boat moored on the inner slip side stays where it is throughout; access for the underside backing-plate install is from the dock edge or, in the shallow margin at the bank, a brief wade. The build breaks into three phases.
Phase 1 — Preparation. The crew mobilizes from our Houston base to the Montgomery property, about a 50-mile local run. Materials and the generator-compressor pair are unloaded and carried onto the dock; layout chalk lines mark the three cleat positions along the 20 LF outer edge at the spacing appropriate for a sub-30-foot surf boat. The fatigued deck boards along the upgrade strip come up — roughly 80 LF of 5/4x6 lifted and stacked for haul-off, exposing the existing joists along the outer edge.
Phase 2 — Structural Installation. The 2x8 CCA sub-deck blocking is set between the existing joists along the upgrade strip, lag-bolted into the joist sides so it carries load like the joists themselves. At each of the three cleat positions, the 4x4 CCA cleat-zone blocking is added directly under where the cleat will land, creating a solid wood landing patch beneath every bolt hole. Fresh 5/4x6 CCA deck boards go down across the rebuild strip, fastened with 316 stainless deck screws into the new framing. Each cleat is then set on top, the four thru-bolt holes are drilled through deck, blocking, and the underside, and each cleat is thru-bolted with 316 stainless hardware into a 10x10x1/4-inch steel backing plate on the underside. Nyloc nuts and plate washers go on under the deck; everything is torqued to spec.
Phase 3 — Edge Protection & Finish. The 20 LF of commercial UV rub rail / bumper is mounted along the outer deck fascia, fastened with 316 stainless screws set on the spacing the manufacturer recommends for a heavy-duty profile. The crew performs a load check by hand on each cleat, confirms torque on every bolt, picks up scrap and CCA debris for disposal, and walks the dock with the owner. The owner is back to using the dock that evening.
For this Lake Conroe outer-edge upgrade, the quote came in at $4,550 — $227.50 per linear foot on a 20 LF basis. That number is a fixed-scope repair package: labor for the three-person crew, the CCA lumber for the cleat-zone deck rebuild, the three commercial mooring cleats with backing plates and thru-bolt kits, the 20 LF of commercial UV rub rail, all the 316 stainless fasteners and marine sealant, the generator and compressor for the day, mobilization from Houston, and CCA debris disposal. Permit cost is $0 — this is an in-kind repair with no waterward expansion, so neither SJRA nor USACE Section 10/404 review applies.
The per-foot figure is higher than a straight deck-board swap for a reason: most of the cost on a job this size is hardware and crew day, not lumber. Three commercial cleats with backing plates and thru-bolt kits, 20 LF of marine-grade rub rail, and one full working day of a three-person crew carry similar fixed cost whether the upgrade strip is 20 feet or 60 feet, so longer runs land at a lower $/LF. Our Lake Conroe pier cost overview covers per-foot ranges by service type, and the Lake Conroe pier service overview walks through what we typically deliver from new construction to localized repairs like this one.
The cleat assembly itself — backing plate, thru-bolts, blocking, and 316 stainless hardware — is engineered to outlast the deck boards it sits on. Freshwater service with stainless fasteners and CCA-treated wood is the most forgiving combination in marine construction. The realistic service window on the upgrade is a 10-year horizon: the deck boards in the rebuild strip will weather on the same curve as the rest of the dock, but the cleat-zone framing and the cleats themselves will still be solid when the next deck refresh comes around. If the surface boards are eventually replaced, the cleat assemblies can be unbolted from the underside, the new deck laid, and the cleats reinstalled on the same plates — a transferable upgrade, not a sunk cost.
Lake Conroe is a San Jacinto River Authority reservoir, so shoreline work on it is governed by SJRA's permit rules. The key word for this project is repair. SJRA's permit triggers are new pier construction, waterward expansion of an existing pier, increases in dock footprint, and pile-driving for new structural supports. An in-kind repair on the existing footprint — replacing fatigued boards in place, adding mooring hardware to an outer edge that is already part of the permitted dock, mounting a rub rail along an existing fascia — does not change any of those parameters and therefore does not trigger a fresh SJRA submission. The U.S. Army Corps of Engineers Section 10/404 review is driven by changes to the navigable waterway, not by maintenance on an already-permitted structure, so it does not apply here either.
The mistake we see on this kind of project is owners assuming "no permit" means "no rules." It does not. SJRA's shoreline rules still govern what kind of structure exists on the lakefront, and any move that grows the dock or adds pilings has to go back through the permit clock — usually 4 to 6 weeks. If a project starts as a repair and the owner decides midway to extend the dock or add a slip, the scope is no longer permit-exempt and needs to be stopped and resubmitted. We confirm scope with SJRA before bidding any project that has a chance of crossing those lines.
A small cleat fastened with deck screws relies on the screw threads gripping a single 5/4 deck board. A surf boat doesn't pull straight down on that cleat — it tugs sideways with each wake, snatches at it when a passing boat pushes a wave under the hull, and loads it with the full inertia of a 4,000- to 5,000-pound hull every time someone steps on board. Treated lumber dries and softens over the years, the screw threads chew through the wood, and the cleat lifts out — usually all at once, usually under load, usually with someone watching. The fix is not a bigger screw. The fix is to bypass the deck board entirely and bolt the cleat through the deck, through the framing, and through a steel plate on the underside, so the load goes into the dock's skeleton instead of one board.
On this Lake Conroe job, each cleat sits over a localized rebuild of the deck. Fatigued boards in the cleat zone come up, pressure-treated 2x8 sub-deck blocking and 4x4 cleat-zone blocking are added between the existing joists so the cleat has solid framing directly beneath it, fresh 5/4x6 CCA deck boards go down, and the cleat is set on top with four 316 stainless steel bolts passing through the deck and a 10x10x1/4-inch steel backing plate underneath. The plate is the quiet hero of the assembly — it turns four bolt holes into a load-distribution patch about the size of a dinner plate, so the pull from a tugging boat is spread into the joist frame instead of concentrated at four small bolt heads.
For an in-kind repair like this one — replacing fatigued deck boards, adding mooring hardware, installing a rub rail along an existing footprint — the answer is generally no. Lake Conroe is a San Jacinto River Authority reservoir, and SJRA's shoreline rules require a permit for new pier construction, expansion of an existing pier waterward, or significant changes to the dock footprint. A maintenance repair on the existing footprint, with no new pilings driven and no waterward expansion, falls outside that trigger. The U.S. Army Corps of Engineers Section 10/404 review is also driven by changes to the navigable waterway, not by deck-board replacement on an already-permitted dock. Anything that adds length, width, or pilings does require a permit, so always confirm scope with SJRA before bidding any project that grows the structure.
For this Lake Conroe outer-edge upgrade, the quote came in at $4,550 — $227.50 per linear foot on a 20 LF basis — as a fixed-scope repair package. That covers the localized deck rebuild in the cleat zones, three 316 stainless commercial mooring cleats with 10x10x1/4-inch steel backing plates and thru-bolt kits, 20 LF of commercial UV-resistant rub rail along the outer edge, 316 stainless fasteners and sealant, debris haul-off, and a one-day mobilization to Montgomery, TX. The per-foot number is higher than a straight deck-board replacement because most of the cost is hardware and crew time, not lumber — three commercial cleats with backing plates and 20 LF of marine-grade rub rail carry the same fixed cost whether the wall is 20 feet or 60 feet.
One working day on site, with a three-person crew — a foreman, a marine carpenter, and a laborer. The scope is tight enough that demolition, sub-deck rebuild, cleat install, rub-rail mount, and cleanup all fit in a single day. The boat moored on the inner side stays where it is; access for the underside backing-plate work is from the dock edge or, where the water is shallow at the lake margin, a brief wade. The owner gets their dock back the same evening.
It extends the life of the outer edge — the strip where the new boards, cleats, plates, and rub rail are installed — to a 10-year service window when 316 stainless hardware is used as specified. The rest of the dock continues to age on its existing curve. The deck-board surface on the inner walkway, the pilings, the joists, and the slip-side framing are all unchanged by this scope. The honest framing of this kind of project is targeted repair, not whole-dock restoration — if the joists or pilings later show fatigue, those become a separate, larger project. The cleat zones themselves, with the backing-plate detail, will outlast the rest of the deck and can be transferred to a future deck if the surface boards are eventually replaced.
