Vinyl Anchored vs Cantilever vs FRP Bulkhead on an HOA Pond — 2,481 ft in League City, TX

By Roman Ross — Marine Construction Estimator, Shore Protect Construction

An HOA community in League City, Texas came to us with a 2,481-foot pond perimeter that has never had shoreline protection — an earthen-banked freshwater detention pond serving an interior section of the property, with active erosion at the northwest corner and the engineer of record's stamped repair plan already in hand. The question we were asked to price is the one most HOA boards ask when an engineer's repair plan lands on the table: what does the wall actually cost, and is the design we are being asked to build the right design? Below is the three-way wall comparison we delivered — anchored vinyl, cantilever vinyl, and composite FRP, all on the same pond — and what we would tell any HOA board reading the same kind of plan.

The Site: 2,481 LF of Unprotected Earthen Bank on a Freshwater Detention Pond

The pond sits inside a master-planned community in League City, Texas — fully freshwater, an interior stormwater detention basin formed from two earlier ponds combined into one. Surface area is about 6.75 acres, perimeter is 2,618 linear feet earthen, and the engineered scope of work calls for 2,481 feet of structural shoreline. There is no existing wall anywhere on the perimeter. The bank is grass meeting water, top of bank at elevation 25.0, normal water surface at 18.0, and the 100-year storm at 23.06 — so the wall has to hold a 7-foot face on most of the run, and more at the corners.

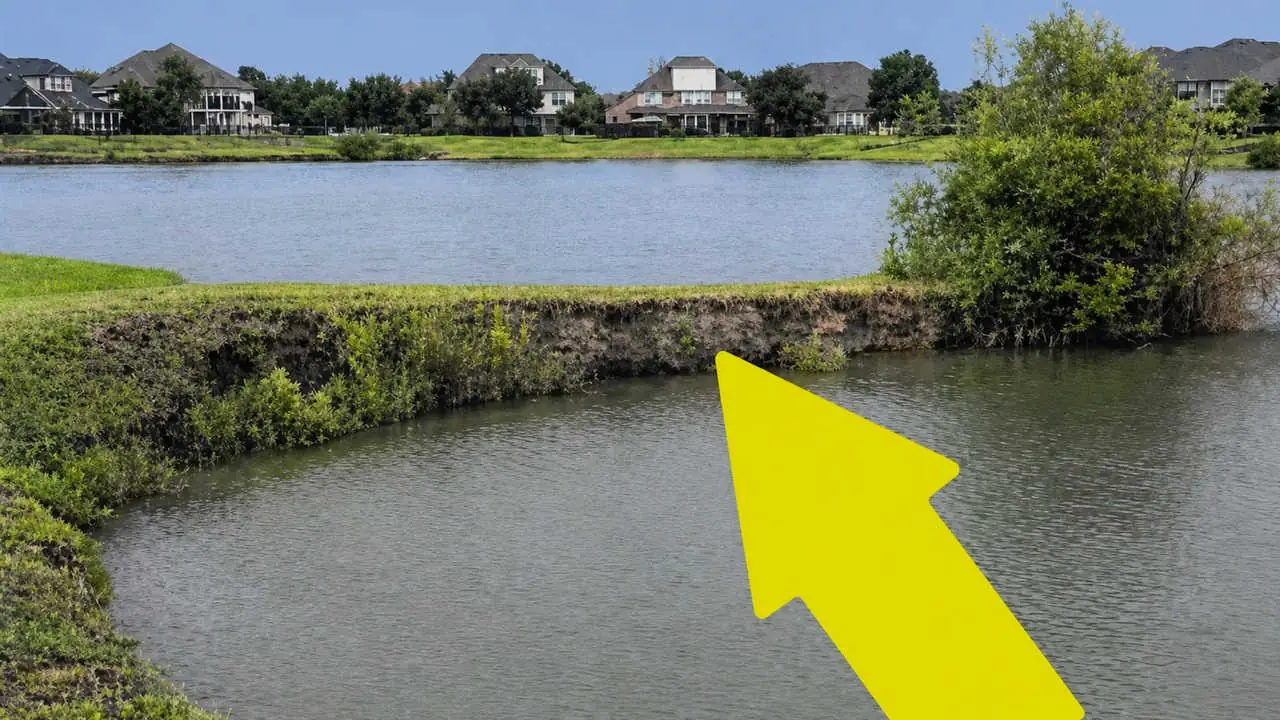

Two facts shaped the bid from the first walk of the engineer's plan set. First, the erosion load is not uniform: the northwest corner takes the long fetch from prevailing southeast winds and the winter north fetch from the opposite direction, and the embankment there is undercut hard enough that the engineer flagged that 652-foot run as Section A — the section that needs anchoring. The southeast 854-foot stretch sees moderate wave action and is structural but not extreme. The remaining 1,005 feet runs along the lower-energy majority of the perimeter where the bank is still vegetated. Second, the pond must keep functioning as a detention basin during construction — partial drawdown only, no full dewatering — because pulling the basin offline would compromise stormwater performance in a hurricane-belt city. Both facts pointed away from "one wall type around the whole pond" and toward the three-section design the engineer specified.

The Decision: Anchored Vinyl vs Cantilever Vinyl vs Composite FRP

The engineer of record's repair plan is a three-wall design, and our bid is for that design as-built — no contractor-stamped alternate. That choice matters: bidding the stamped plan as-is keeps the work inside the engineer's review and avoids the roughly $18,700 City of League City plan-review fee an alternate would trigger. The HOA has already paid for the engineer's plan review, so the question is which wall type goes where, why each one is priced the way it is, and what the per-foot numbers look like side by side.

Wide view of the pond — the unprotected grass perimeter and the community across the water that the pond serves.

If you want the deeper engineering behind anchored versus cantilever design, our complete guide to building a waterfront bulkhead covers tie-rod layout, deadman selection, and the full material matrix. For the same freshwater bulkhead decision at other Texas waterbodies, see our vinyl vs concrete bulkhead on Lake Houston and our vinyl vs wood bulkhead on Lake Conroe. Both are smaller jobs, but the design logic translates: choose the lightest wall the load allows, and reserve the heavier system for the section that actually needs it.

Why Three Wall Types Instead of One

The single design decision worth understanding on this job is the three-section split. Building the entire 2,481-foot perimeter at the anchored rate would have priced the wall at roughly $1.97 million — $950,000 more than the as-bid figure — and most of that wall would have been engineered for a load it will never see. Building the entire perimeter at the FRP rate, on the other hand, would underbuild the northwest corner and put the most-critical section back into failure within a few storm seasons. The right answer on a long perimeter with non-uniform erosion is to match the wall to the load, zone by zone.

The engineer of record's plan does exactly that. The northwest 652 feet — the section with the longest fetch and the deepest undercut — gets the anchored wall: CL-9900 vinyl driven into Houston-area clay, two rows of treated walers, 8-inch helical anchors at 5-foot on-center, and 1-inch galvanized tie rods carrying the load back into stable backsoil. The 854 feet of moderate-erosion southeast gets cantilever vinyl on the same CL-9900 panel, but with a single front waler, 7×7 timber deadman piles, and lighter 3/4-inch tie rods. The remaining 1,005 feet of lower-energy perimeter gets the composite FRP cantilever — no walers, no anchors, just deeper embedment with the SuperLoc 1580 panel and the same composite cap that finishes the rest of the wall. The wall reads as continuous from the surface; the engineering underneath is three different systems.

Materials & Specifications: What Goes Into 2,481 LF

The three sections share a perimeter and a cap. Almost everything else diverges. Below is the material set for each, grouped by what changes between them and what stays the same.

One of the six existing drainage outfalls along the bank — each one becomes a cast-in-place concrete collar in the wall.

One specification on this perimeter quietly drives a separate line item: the six existing drainage outfalls that pass through the bank. Each one needs a cast-in-place concrete collar to seal the wall around the pipe per the engineer's typical detail (Sheet S2.4 in the issued plan). At $4,800 per outfall this adds $28,800 — small against the wall cost, but a real number, and the kind of detail that gets missed on quotes that just multiply length by a per-foot rate.

Phase-by-Phase Execution Plan

The three sections cannot be installed in parallel — the crew, the vibratory hammer, and the dewatering pumps follow one work zone at a time. The sequence is set by the engineer's priority, not by what is easiest. Critical first, moderate second, light-armor third, finish items last.

Phase 1 — Site Prep, Dewatering Coordination, and Survey Verification. The crew mobilizes to the work zone, verifies the engineer's bathymetric and topographic baselines against field reality, lays out the full 2,511-foot wall trace, and installs silt fence and erosion control. Two 6-inch diesel trash pumps are positioned for partial drawdown — the pond stays in detention service throughout construction, no full dewatering. Existing fence and minor vegetation along the work line are cleared as needed.

Phase 2 — Section A Installation (Anchored, Critical NW Corner). The most-eroded northwest section is built first. A 25-ton tracked excavator with a vibratory hammer drives the CL-9900 sheet pile into the clay. The two rows of 3×8 walers are bolted at design elevation, the 8-inch helical anchors are screwed in at 5-foot on-center behind the wall and tied back with 1-inch galvanized tie rods, and the sucker-rod deadman extensions are set at depth. Jet-filter weeps are installed at the same 5-foot spacing for hydrostatic relief. This is the section the wind fetch loads the hardest, and it gets the heaviest hardware.

Phase 3 — Sections B and C Installation, Cap, and Outfalls. The southeast cantilever vinyl run is next — same vibratory hammer, same CL-9900 panel, but no helix anchors and a single 4×6 front waler. The 7×7 timber deadman piles are set behind the wall and tied to the waler with 3/4-inch anchor rods. The Section C composite FRP cantilever closes out the perimeter — lighter equipment, no walers, no anchors. The UC-1800 composite cap is run continuous across all three sections so the finished wall reads as one structure. The six outfall penetrations get their cast-in-place concrete collars, the backfill envelope is placed and compacted behind Sections A and B, the wingwalls and disturbed slopes are sodded with St. Augustine, and the engineer of record walks the final punch list.

Cost Anchor: What 2,481 LF Costs on a League City HOA Pond in 2026

For this 2,481-foot League City installation, our wall subtotal lands at $1,016,495 — Section A at $518,340, Section B at $251,930, Section C at $246,225 — and the full project, with the six outfall structures ($28,800), six months of dewatering and sodding ($24,060), six months of construction inspection ($33,000), the League City permit plus mobilization ($10,700), and the backfill envelope ($42,000), totals $1,155,055. The per-foot wall rates are flat-rate and cover labor, materials, and equipment for each section.

The headline worth saying out loud is the benchmark. The engineer of record's planning estimate priced the same anchored design at $800 per linear foot and the cantilever vinyl at $300 per linear foot. We are sitting $5 per foot under each of those numbers, and the composite FRP section adds 388 feet of perimeter that was not in the engineer's pre-FRP planning total. The result is a wall that covers more perimeter than the engineer's planning budget anticipated, at a number that defends well against an HOA reserve study. For broader local context, our bulkhead construction cost in League City, TX page covers area ranges, and the League City bulkhead service overview walks through what we typically deliver on jobs from a single-family lot up through this kind of HOA-scale perimeter.

Lifespan & Long-Term Cost of Ownership

Upfront price is the easy number on an HOA capital project. The harder number, and the one that matters to an HOA board planning out a 30-year reserve study, is what each section actually costs to own over its service life. Here is how the three sections compare.

Permitting on a League City Detention Pond

Bulkhead work on an HOA detention pond inside the City of League City is a commercial building permit, not a coastal-zone permit. The City reviews the engineer-stamped repair plan, the engineer of record's seal carries the design, and the contractor pulls the permit with the plan set attached. Our quote carries $4,200 for that permit line, separate from mobilization.

Two open items typically decide whether the permit lands cleanly. First, bathymetric survey freshness: if the City's reviewer finds the engineer's survey stale at submittal, an updated survey is the most common change-order trigger on this kind of job — we carry that as a $6,500 contingency, not a base-bid line. Second, the engineer-of-record relationship: bidding the stamped plan as-built (no contractor-stamped alternate) keeps the work inside the engineer's existing City review and avoids the $18,700 plan-review fee an alternate would trigger. Galveston County stormwater and the Texas Commission on Environmental Quality typically do not require an extra review on a partial-drawdown bulkhead replacement that keeps the pond's detention function intact, but the engineer of record confirms that on the plan submittal.

Frequently Asked Questions

Why does the same pond use three different bulkhead types?

Because the erosion is not uniform around the perimeter. The engineer of record split the 2,481-foot shoreline into three zones based on what each one actually needs. The northwest corner takes the longest fetch from prevailing southeast winds and is the most undercut — that 652-foot section gets the heavy-duty anchored wall. The southeast stretch sees moderate wave action and needs a structural wall but not the full helix-anchor system, so 854 feet runs as a cantilever vinyl wall. The remaining 1,005 feet is the lower-energy majority of the perimeter and is built with lighter composite FRP cantilever. Matching the wall type to the load is what brings the per-foot cost down from $795 to $245 across the run, instead of overbuilding the entire pond at the top rate.

What is the difference between an anchored bulkhead and a cantilever bulkhead?

A cantilever bulkhead stands up by embedment alone — the panel is driven deep enough that the soil in front and behind holds it plumb, like a fence post in the ground. An anchored bulkhead is held by a tie-rod system: a horizontal rod runs from the wall back to a buried deadman or helix anchor, and the anchor takes the load that the embedment cannot. On this pond the anchored section uses 8-inch Hubbell helical anchors rated at 12,000 pounds and 1-inch hot-dip galvanized tie rods at 5-foot on-center; the cantilever vinyl section uses 7×7 treated timber deadman piles with 3/4-inch tie rods; the composite FRP section is unanchored, just deeper embedment. The choice depends on the soil, the height of the wall, and how much water energy the wall has to take.

Why use composite FRP instead of more vinyl sheet pile?

On a lower-energy section, composite FRP gives the right wall at a lower price. The Creative Pultrusions SuperLoc 1580 is a fiber-reinforced polymer sheet pile — lighter than vinyl per foot, faster to handle, and rated for the cantilever load this section needs. It is also immune to rot, marine borers, and UV degradation, like vinyl. The 1,005-foot section runs at $245 per linear foot in FRP; running CMI ShoreGuard CL-9900 vinyl with the cap and waler hardware of the adjacent cantilever section would price closer to the cantilever vinyl rate without adding service life. Picking FRP for the low-energy majority of the perimeter is what keeps the project under the engineer's pre-FRP planning budget.

Why is the anchored section so much more expensive per foot ($795 vs $295)?

Because almost every line item is heavier. The anchored wall carries two rows of 3×8 walers instead of one 4×6 row; it uses 1-inch tie rods at 5-foot spacing instead of 3/4-inch at wider spacing; it carries helical anchors at $90–$110 each plus the sucker-rod deadman extensions; it gets the jet-filter weep holes the cantilever sections do not need; and its installation crew works through the most undercut, most fetch-exposed section of the perimeter where production is slowest. The $795 rate is also benchmarked against the engineer's planning estimate of $800 per linear foot for the same anchored design — we are sitting $5 under that anchor, not inventing a number.

How long does a 2,481-foot bulkhead installation take on an HOA pond?

About six months — 24 calendar weeks — assuming the permit is in hand at the start and the pond stays in partial-drawdown mode for dewatering. The crew is one foreman, two marine carpenters, two laborers, a pile-driver operator, and an equipment operator for the full duration. The northwest anchored section is sequenced first because it is the most critical and the most exposed to wind fetch; the cantilever vinyl section follows on the southeast; the composite FRP section closes out the perimeter; and outfall structures, cap installation, and sodding run in parallel and at the end. Tree removal beyond minor brush, bathymetric survey re-do, and design RFIs are scoped separately because they can each shift the schedule if triggered.

Who pulls the permit on a League City detention pond bulkhead?

On a community detention pond, the bulkhead permit is a City of League City commercial building permit pulled by the contractor, with the engineered repair plan and the engineer-of-record's stamp attached. Because the pond keeps its stormwater detention function during construction — partial drawdown only, no full dewatering — Galveston County stormwater and the Texas Commission on Environmental Quality typically do not require an additional review for this kind of work, but the engineer of record confirms that on the plan submittal. If the City rejects the existing bathymetric survey at permit and requires an updated one, that is the most common change-order trigger on a job like this. We carry $4,200 in our quote for the City of League City permit and a separate line for mobilization.
